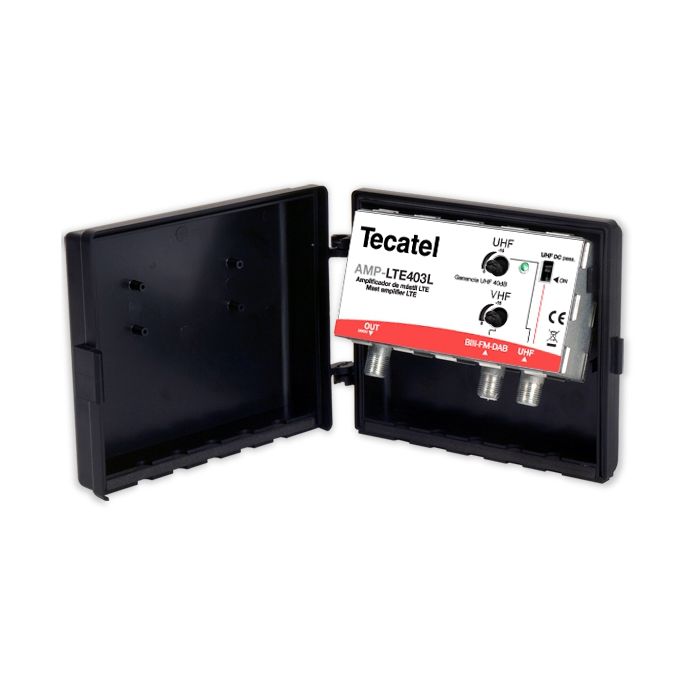

main product photo

Mast Amplifier TDT 40dB LTE 5G 12-24V Tecatel

SKU
TECAMPLTE403L
Brands: Tecatel
% Discount for professionals
Tecatel
Availability: Out of stock
Consult

Mast Amplifier DTT 40dB LTE 5G Tecatel AMP-LTE403L

DTT mast amplifier with 40dB of gain (adjustable ± 15dB) and maximum output level of 112dBμV. It has a UHF input and another for VHF/FM/DAB. Amplifier adapted to the 2nd Digital Dividend thanks to the 5G LTE filter that integrates with cut-off on channel 48 (694 MHz).

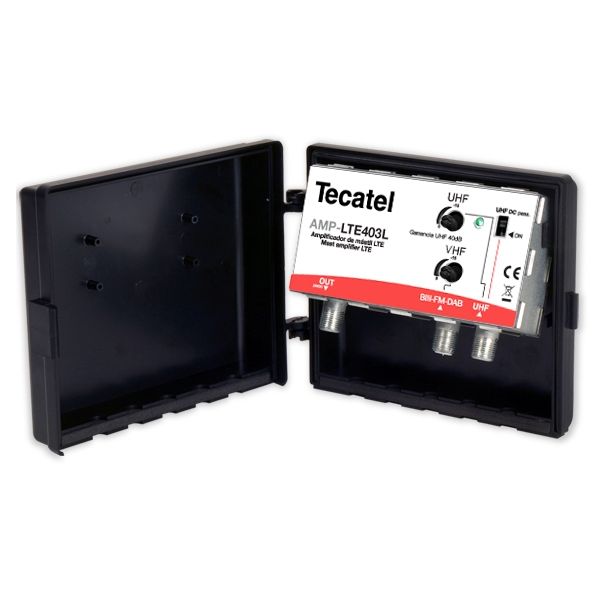

This high gain amplifier includes an external 145x110x45mm hood so it can be installed on the antenna mast, perfectly protected from the elements.

The equipment is powered at 12-24V with a low consumption of 72mA. The amplifier includes a DC current pass to be able to supply active DTT antennas.

Reference: TECAMPLTE403L

DTT-UHF 40dB mast amplifier adapted to the second digital dividend and with DC current pass.

What are the main features of the Tecatel AMP-LTE403L mast amplifier?

  • Power from 12 to 24V.
  • Separate entries of UHF and VHF.
  • Integrated LTE filter.
  • Consumption 62 mA.
  • Professional broadband amplifier for mast, 40 dB UHF.
  • Amplifier of last generation of low consumption.
  • Current passage to feed active dipoles.
  • Low noise figure.
  • Zamak chassis.

What technical specifications does the Tecatel AMP-LTE403L mast amplifier have?

Entradas / Input Ports

1 x VHF

1 x UHF

Rango de frecuencias (MHz) / Frequency range (MHz)

47 – 230 MHz

470 - 694 MHz

Ganancia / Gain

30 dB

40 dB

Ajuste de ganancia / Gain ajustment

 15 dB

Nivel de salida DIN45004B-60 / Output level DIN45004B-60

 112 dBµV

Figura de ruido / Noise figure

 ≤ 3 dB

Conectores / Connector

 F Hembra / F Female

Alimentación / Power Supply

 12 - 24V

Consumo / Power consumption

 72 mA

Paso de corriente previo / DC pass

 Sí / Yes

Índice de protección / Protection level (IP)

 IP23

Dimensiones / Dimensions

 145 x 110 x 45 mm

Peso / Weight

 300 gr.
More Information
More Information
EAN 8430549068315
Hight 0.140
Length 0.050
Width 0.100
DTT System DTT Amplifier
SERIES DTT F-connector
Color Black
Type Mast amplifier
Entorno Exterior
# Inputs 2
Outputs 1
Gain 40
Max. output level Ganancia (dB/uV) 112
LTE compatible No
Current bypass Terrestrial
Usar stock disponible No
Product Brand Tecatel
