Maxi 7'' Monitor Comelit VIP System

SKU

COM6802W

Brands: Comelit

Availability: On request

Delivery: 1 to 7 days

€553.22 Tax included

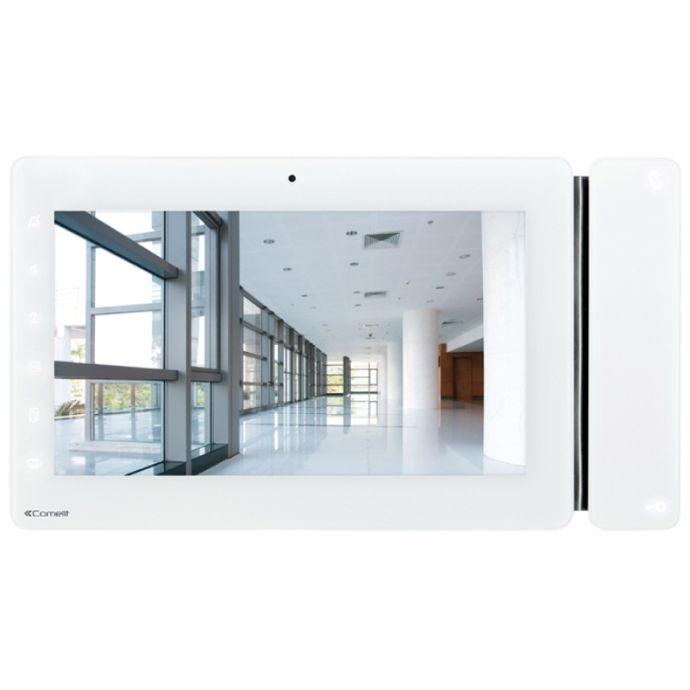

Comelit 7” Maxi Monitor with VIP System 6802W

This monitor has a large capacity 7” widescreen, with a 16:9 aspect ratio and a resolution of 800x480 pixels. It is a monitor with full duplex hands-free audio.

It can be installed in single-family homes or in residences compatible with the VIP system. Among the functions that we can find with this monitor are: adjustment of the ringtone, audio, color and contrast. We can customize the ringtone. It has an internal agenda to manage calls and internal memo operation.

Includes sensitive touch controls with LED backlighting. It has 4 buttons: one for the privacy function, one for auto-ignition and two more for various uses.

It can be installed recessed, on the surface or with a desktop base. Dimensions: 223x124x25mm.

Details

Technical Specifications of the Comelit 7” Maxi Monitor with VIP System 6802W

GENERAL DATA
Height (mm)	124
Width (mm)	223
Depth (mm)	25
Product weight (g)	700
Product color	White RAL9003, base grey RAL7001
Type of finishing materials	ABS, Glass
Flush-mounted	Yes, with a dedicated accessory
Wall-mounted	Yes, with a dedicated accessory
Desk base-mounted	Yes, with a dedicated accessory

COMPATIBLE SYSTEMS
ViP	Yes

DISPLAY
Display size (")	7
Aspect Ratio	16:9
Touch screen	Yes, resistive
Resolution (pixels)	800x480
OSD menu	Yes

AUDIO FEATURES
Microphone	4mm (Ø), Omnidirectional
Loudspeaker	80mm (Ø), 80 Ohm, 1W
Technologies implemented	Full-Duplex

ELECTRICAL CHARACTERISTICS
Type of power supply	PoE
PoE power supply	Standard IEEE 802.3af, Comelit PoE (56VDC)
Absorption in stand-by (W)	1,8
Maximum absorption (W)	3,4

HARDWARE FEATURES
Type of buttons	Capacitive
Service buttons	Lock-release, Answer, Silent (Privacy), Menu, Messages, Door open
No. of programmable buttons for additional functions	2
Clamps	CFP1 In1 Al Pan Out1 S+ S- 0V
Removable terminals	Yes
Number of inputs (n°)	1
Number of outputs (n°)	1
Memory card supported	Micro-SD (not supplied)
Communication ports	RJ45 (Ethernet)
