| Feature |
Specification |
| Manufacturer |
Iddero |
| Reference |

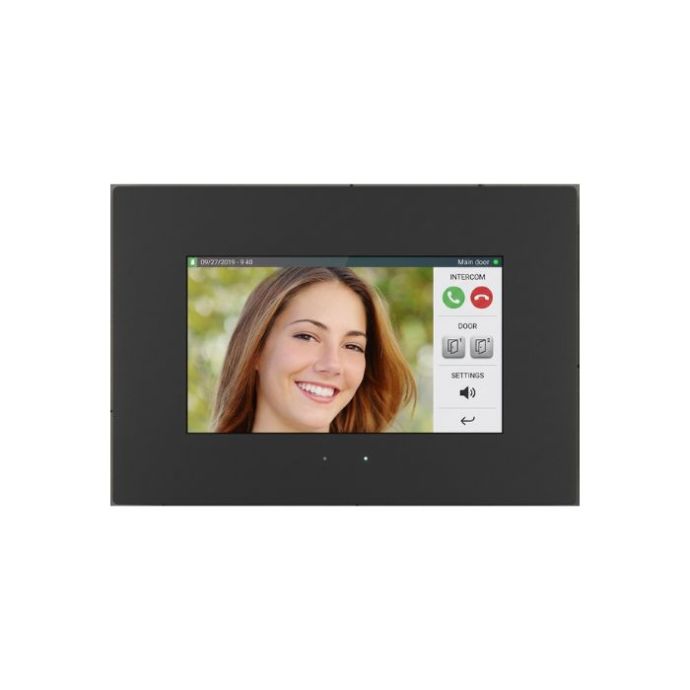

HC3-KNX-CB |
| Finish |
Black CLASSIC |
| Main application |
Control and monitoring of KNX installations with IP video door entry functionality |
| Installation |
Flush-mounted in a wall |
| Flush-mounting box |
Iddero E-C557, 200 × 130 × 60 mm |
| Dimensions |
228 × 156 × 39 mm |
| Weight |
650 g without frame, plus 125 g for the frame |
| Display |
7-inch widescreen TFT, 16:9 format |
| Resolution |
1024 × 600 pixels |
| Colour depth |
24 bpp, 16.7 million colours |
| Contrast |
800:1 typical |
| Backlight |
Low-power white LED with energy-saving mode |
| Brightness |
400 cd/m² typical for the CLASSIC version, software adjustable |
| Viewing angle |
80° left/right, 60° top and 70° bottom, typical |
| Touch technology |
Projected capacitive multitouch screen |
| Interface capacity |
Up to 512 configurable pages and 8 controls per page; over 4,000 functions |
| Graphical navigation |
Customisable floor plans, zones and background images |
| KNX functions |
User-editable scenes, schedules, alarm history, presence simulation and logic functions |
| Thermostats |
4 independent thermostats |
| Touch gestures |
4 directional gestures and 1 multitouch gesture |
| Remote control |
Integrated web server with access from smartphones, tablets and computers through Iddero Cloud |
| Video door entry |
Full-duplex audio with echo cancellation; compatibility with the connected system must be checked |
| IP cameras |
Monitoring of compatible IP cameras |
| Audio |
2 W + 2 W stereo speakers and integrated digital microphone |
| Indicators |
Three-colour status LED and buzzer |
| KNX interface |
Direct KNX TP1 bus connection using a standard KNX connector |
| KNX bus consumption |
4 mA typical and 10 mA maximum at 29 VDC |
| Ethernet |
10/100/1000 BASE-T via RJ45 |
| Expansion interface |
RS-485 bus |
| USB |
USB 2.0 Type-A, maximum output 600 mA |
| Multifunction inputs |
4 independent inputs, configurable as binary inputs or temperature probe inputs |
| Binary input type |
Potential-free contact; push-button and switch/sensor modes |
| Recommended maximum input cable length |
50 m |
| Compatible temperature probe |
Iddero DW-TS-N1PB |
| Real-time clock |
RTC with ±20 ppm deviation at 25°C |
| Backup battery |
CR1220, 3 V, 35 mAh |
| Power supply |
12 VDC ±5% |
| Power consumption |
2.3 W typical in energy-saving mode, 4.7 W typical during operation and 17 W maximum |
| Included power supply |
12 VDC, 25 W DIN-rail unit; 90–264 VAC input at 50–60 Hz |
| Operating temperature |
0 to 50°C |
| Storage temperature |
−20 to 70°C |
| Relative humidity |
10–90%, non-condensing |
| Notifications |
Email; GSM notifications require the optional Iddero DW-GSM expansion module |
| Directives |
2014/30/EC and 2011/65/EC |
| Harmonised standards |
EN 50090-2-2, EN 50491-5-1:2010, EN 50491-5-2:2010 and EN 50581:2012 |
