Multimode Fiber Optic Patch Cord OM4 3mm Duplex LC/PC LSFH 2m

SKU
TEL230932
Brands: Televes
Availability: On request
1 to 7 days
€16.79 Tax included
-
+

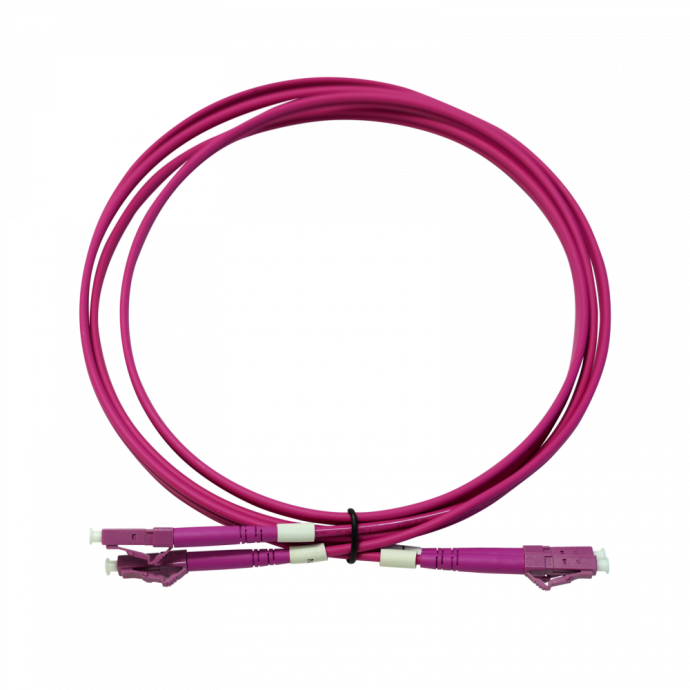

OM4 Multimode patch cord with Duplex LC/PC connector from Televes

This fiber optic patch cord allows the transmission of optical signal from one device to another, separated from each other by a distance of 2 meters.

This fiber optic patch cord has two LC/PC connectors at each end, since it is duplex. Its 3mm cover is LSFH halogen-free, suitable for indoors.

This cable comes in magenta color, the cable type is multimode OM4 ITU-T G.651.1.

Technical Specifications of the OM4 Multimode patch cord with Duplex LC/PC connector from Televes



Fiber core type



Multi-mode (ITU-T-G.651.1)

Optical fiber type category



OM4

Fiber core diameter

μm

50

Fiber cladding diameter

μm

125

Coating buffer diameter

μm

250

Outer sheath Diameter

mm

3

Outer sheath Material



LSFH

Blocking jelly



No

Insertion losses in connector 1

dB

< 0.3

Insertion losses in connector 2

dB

< 0.3

Return losses in connector 1

dB

> 30

Return losses in connector 2

dB

> 30

Optical connector type 1



LC

Polishing type (Optical connector 1)



PC

Optical connector type 2



LC

Polishing type (Optical connector 2)



PC

Structure reinforcement element



Aramid fibers

Minimum bending radius

mm

45

Operating temperature

°C

-20 ... 70

More Information
EAN 8424450277201
System Multimode
Serie 2m
Fiber type Multimode
Entorno Interior
Color Pink
Product Brand Televes
