Network Certifier CAT 6 Type F GTLan

SKU
22GTCRC6
Brands: GTlan
Availability: Out of stock
5 days

GTLAN CAT 6 F-Type Network Certifier

Professional wiring certifier 22GTCRC6 of GTLan for installer type F up to Category 6. With internal memory for 100 certifications and USB port for external storage, where we can connect USB memory sticks.

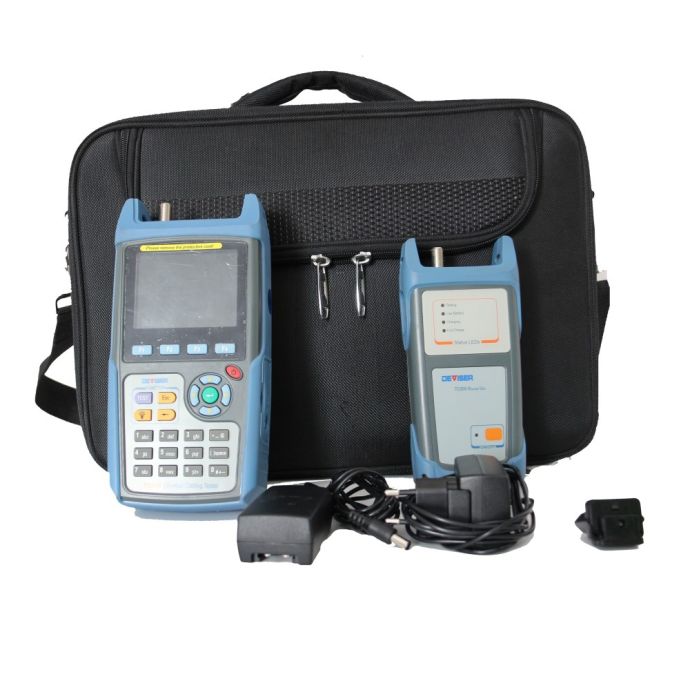

Includes main unit with display + remote. Performs functions of Mapping, TDR, Insertion Loss, Attenuation, ACR, ELFEXT.

It has a lithium battery with an autonomy of  up to 3.5h, so we can use it without cables. Valid for Cat. 3 (class C), Cat. 5e (class D) and Cat. 6 (class E).

Accessories included:

  • Remote loading

  • Soft cover

  • Software for data download.

Reference: 22GTCRC6

Would you like us to notify you when stock arrives?

Leave your email and we will notify you when it is available again.

We will use your email for this alert and, only if you choose, for offers. Privacy policy



GTLan economic network certifier for structured cabling category 6, for type F installer.

What technical specifications does the GTLan 22GTCRC6 network certifier have?

  • Wiring Certifier up to Cat. 6
  • Valid for Cat. 3 (class C), Cat. 5e (class D) and Cat. 6 (class E)
  • Lithium battery with autonomy for 3.5 hours.
  • Charging time 5 hours.
  • USB port for USB memory connection.
  • Internal memory for 100 certifications.
  • Components: Main unit (with display) + Remote
  • Functions: Mapping, TDR, Insertion loss, Attenuation, ACR, ELFEXT.
  • Regulations: EN61000-3-2: 2014, EN 61000-3-3: 2013. OSP / IEC 11801, TIA / EIA 568B.
Product color Gray/blue
Material Plastic and metal
Packaging Unitary
Dimensions without packaging Certifier: 222 x x108 x 57 mm Remote: 184 x 83 x 44 mm
Dimensions with packaging mm 475x385x170 mm
CE YES
Current rate April 2023
Calibration and maintenance Yes
Accessories Remote charging, soft case, software for data download.
Contains Main unit (with display + remote
Connections RJ45 UTP (C-3 class C, C-5E class D), RJ45 ( C-6 class E), RJ11, USB for memory connection
Functions Mapping, TDR, Insertion loss, Attenuation, ACR, ELFEXT
Battery Lítio
Battery charging time 5 hours
Autonomy 3.5 hours
Internal memory For 100 certifications
Weight without packaging Certifier: 0.8 Remote: 0.4
Specifications Valid for Cat.3 (class C), Cat. 5e (class D) and Cat. 6 (class E). USB port for connection of USB memory sticks.
Standards ANSI/TIA/EIA 568.x Rev. E, ISO/IEC 11801, IEEE/ISO/IEC 802-3 (1000BASE-T)
GTLAN catalog version 2023-2024
More Information
EAN 8404622600013
Hight 0.380
Length 0.180
Width 0.470
Product Brand GTlan
Color Blue
INSTALLER - Serie Certificador de red datos y telefonía
INSTALLER - System Data
Write Your Own Review
You're reviewing:Network Certifier CAT 6 Type F GTLan
Your Rating
File Label Size Download
pdf Ficha Técnica Certificador de redes CAT 6 GTLan para instalador tipo F 163.2 KB Download
