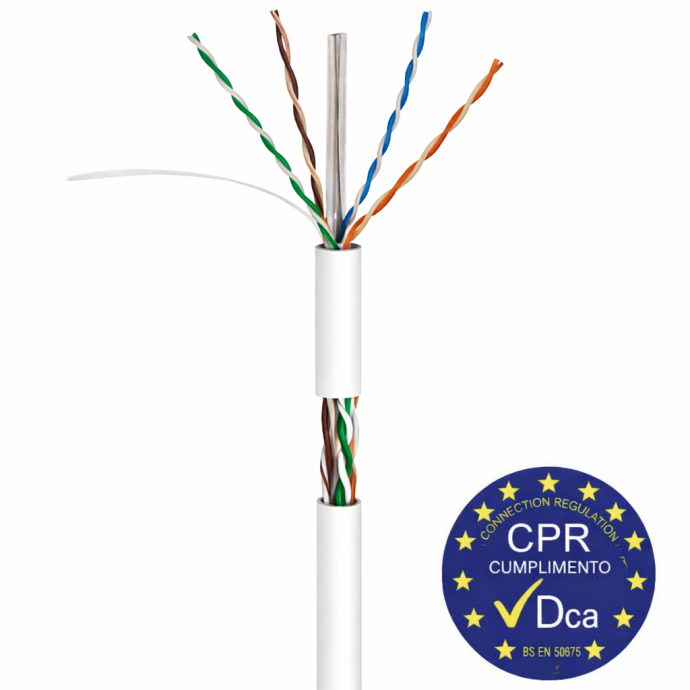

Nimo U/UTP CAT6A Indoor White Cu CPR Dca Cable in 305m Reel

SKU
NIMWIR9080D-305
Brands: NIMO
Availability: Out of stock
Consult

Nimo Category 6A Indoor UTP Cable, White, 305m Reel, LSZH DCA

The Nimo WIR9080D-305 is a Category 6A U/UTP cable specially developed for indoor environments where speed, security and reliability are essential.

Thanks to its copper conductor , it ensures stable and high-performance data transmission, ideal for demanding network applications such as 10 Gbps Ethernet , telecommunications and audiovisual systems.

Its white jacket makes it perfect for discreet installations in offices, residential buildings, and corporate environments. The cable reference, characteristics, classification, and metering system are visible along the cable's length. It is also CPR Dca certified , complying with European fire safety regulations. The outer jacket is made of halogen-free material and produces low smoke emissions in the event of a fire, making it a safe and professional option for structured cabling projects.

The 305-meter spool offers the right length for medium-sized installation jobs, allowing for clean, organized runs with fewer splices.

Used in a modern office with multiple workstations, this Cat6A cable enables the deployment of a high-speed internal network that supports video conferencing, IP telephony, and intensive data transfer applications.

Connect your network with maximum reliability thanks to the Nimo WIR9080D-305 cable: pure copper, CPR DCA certification, and professional speed over 305 meters of guaranteed quality.

Reference: NIMWIR9080D-305

Technical Specifications of Nimo's Category 6A Indoor UTP Cable, White, 305m Reel, LSZH DCA

Feature Attribute Units Ref. WIR9080D-305
Conductor Type   Single-core Solid Conductor
Material   Cobras With
Diameter Ø mm 1/0.560±0.010
Calibre AWG 23
Conductor insulation Material   HDPE - High-density polyethylene
External diameter mm 1.0±0.1
Minimum thickness mm 0.23±0.05
Color   P1. Brown and Brown-White P2. Blue and Blue-White
P3. Orange and Orange-White P4. Green and Green-White
Interior set Diameter mm 5.7 (Crosshead)
Stuffed Type   Cross - “Crucifix”
Material   ---
Wrapping tape Material   ---
Conductivity   ---



Feature Attribute                              Units Ref. WIR9080D-305
Armor Class U/UTP
Sheet on a set of pairs No
Material ---
Twisted over a set of pairs No
Material ---
Coverage                                  % ---
Sheet on each pair No
Material ---
Outer cover Material LSZH
Diameter                                   mm 7.2±0.30
Thickness                                      mm 0.80±0.30
Reaction to Fire (CPR)                 CPR Dca - s2, d1, a1
Color White
Marked text And
Markup text color Negro
Ground cable No
Torn thread And
Electrical characteristics Frequency range                     MHz 500
Impedancia                               Ω/Km 100 ± 15
Differential delay (skew)              μs <0.045
Nominal mutual capacity              nF/Km ≤56
Working voltage                         V 30
Dielectric strength                   Vac 500
Insulation resistance             MΩ/ Km 100
Working temperature °C 70
Minimum curvature radius 8 times the diameter of the cable
Dispensing system Coil in box
Cable length m 305
Packaging Type Printed corrugated cardboard reel
Size                                   mm 400.0*220*400
Peso                                        Kg 10
More Information
EAN 8436300196563
Hight 0.000
Length 0.000
Width 0.000
CTI - System CAT6A
CTI - Serie 305m
Entorno Interior
Type UTP
Category 6A
Halogen-free Yes
Color White
Cobertura Exterior Cables LSFH
Conductor Interno Cables Copper (Cu)
Usar stock disponible No
Product Brand NIMO
