Optical Receiver Overlight Quattro FM/DAB/UHF/SAT Televés

SKU
TEL237540
Brands: Televes
Availability: In stock
24/48 Hours
Free shipping
(Iberian Peninsula)
€267.93 Tax included
Televes

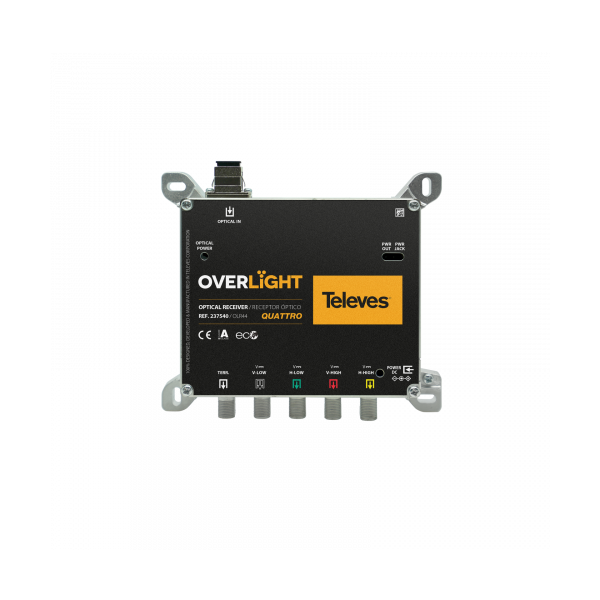

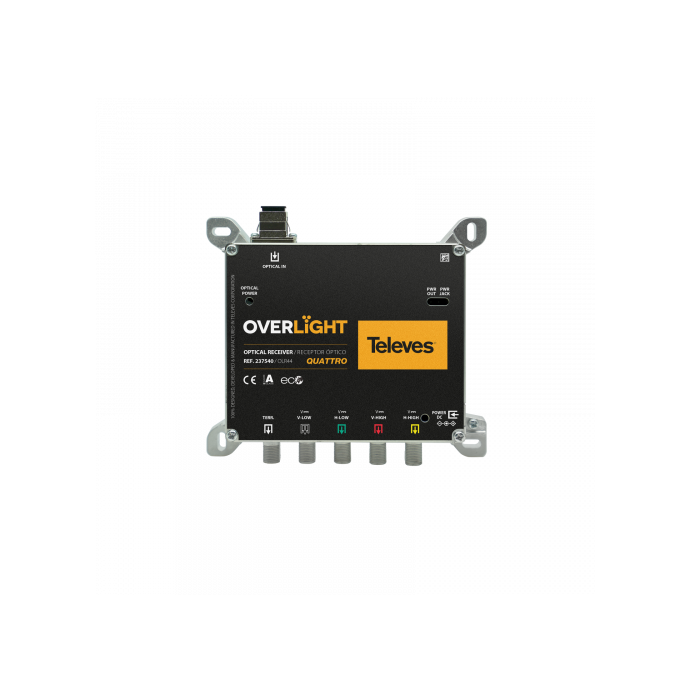

Optical Receiver Overlight Quattro FM / DAB / UHF / SAT Televés 237540

The Quattro Overlight series receiver receives the optical signal and processes it to recover original terrestrial and satellite TV signals. Providing 4 RF outputs in Quattro mode so that in each connector we can obtain a different polarity from TVSAT (polarity and band).

It can be used with the optical transmitters of the same Overlight range (Ref. 237501 and Ref. 237502) and also with the LNB Overlight 747402.

The receiver has low losses and is compatible with GPON installations. Compact and low weight. It has an optical SC/APC connector and 4 type F RF connectors.

It has an LED indicator, which shows us the status of the receiver. The device can be screwed to the wall.

Technical specifications of the Optical Receiver Overlight Quattro FM/DAB/UHF/SAT Televés 237540







Ref

237540



Parameters RF

Output RF



4x LEGACY/1 x TERR

Frecuency Range

MHz

87..694/950..2150

Impedance

Ohm

75

Legacy output level

dBuV

64-71, depends channel

TERR output level

dBuV

79-83

OPTICAL

Wavelength range

Nm

1200..1600

Return losses

dB

>40

Photo diode

Tipo

InGaAs

Optical input level

dBm

-13..-6

GENERAL

RF Connectors

Nº /tipo

4x F female

Optical Connector

Nº /tipo

1 x SC/APC

Voltage

V==

12-18

Consumption

mA

750 @12v   570@18v

Operating temperature

ºC

-5..+45

Weight

G

400































More Information
EAN8424450246689
ColorGray
SystemFibra Óptica
SERIEOverligth
Product BrandTeleves
ManufacturerTeleves
FO DistributionFO Splitter
EntornoExterior
