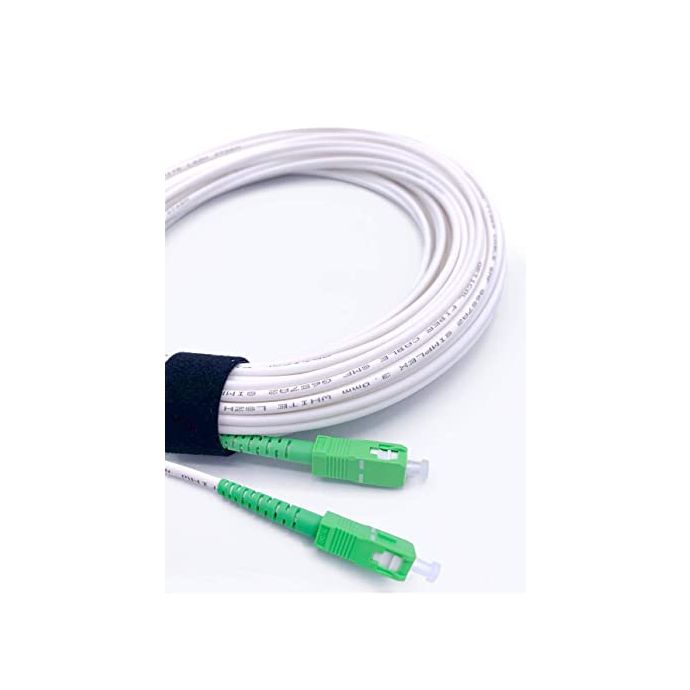

Preconnected patch cord SC / APC single-mode G657A2 20 m long

The Tecatel fiber optic patch cord FO-070074 allows the connection of two devices separated from each other by a distance of 20 meters.

What technical features does the fiber optic patch cord FO-070074 have?

• Single-mode fiber optic patch cord G657-A2, 9/125 μm 3 mm
• Connectorized SC / APC to SC / APC
• LAN and MAN
• CATV system
• Digital communication system
• Compliant with ICT2
• Insertion loss: <0.3 dB
• Return loss:> 60 dB
• Cover LSZH

What connectors does this patch cord use?

It uses an SC connector, which is a low loss optical fiber connector, widely used in SM installations and CATV and Network applications, which was designed for use in high vibration environments, and an APC (angular) polishing favors the coupling between two fibers on a surface inclined to 8 degrees. This causes the light transition reflections not to return to the fiber core, which increases the return loss to values ​​greater than 60 dB.
