2 Meters SC/APC single-mode patch cord

Fiber Optic Hose SM SC/APC 2 meters

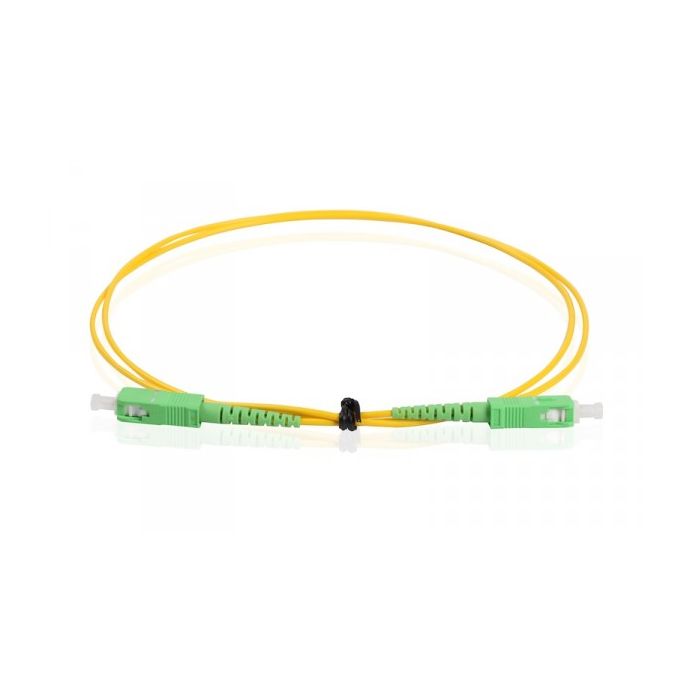

Tecatel single-mode fiber optic patch cord FO-070065 with SC/APC connectors at both ends, allows us to transmit an optical signal from one device to another separated by a distance of 2 meters. Also available in 1m, 3m, 20m, 30m and 40m lengths.
This fiber optic patch cord with LSZH halogen-free cover is ideal for indoors. It has an external diameter of 3 mm and is used in installations with known lengths.
The Tecatel fiber optic patch cord FO-070065 allows the connection of two devices separated from each other by a distance of 2 meters.
What technical characteristics does the fiber optic patch cord Tecatel FO-070065 have?
- Single-mode fiber optic patch cord G657-A2, 9/125 μm 3 mm
- Connectorized SC / APC to SC / APC
- LAN and MAN
- CATV system
- Digital communication system
- Compliant with ICT2
- Insertion loss: <0.3 dB
- Return loss:> 60 dB
- Cover LSZH
What connectors does this patch cord use?
It uses an SC connector, which is a low loss optical fiber connector, widely used in SM installations and CATV and Network applications, which was designed for use in high vibration environments, and an APC (angular) polishing favors the coupling between two fibers on a surface inclined to 8 degrees. This causes the light transition reflections not to return to the fiber core, which increases the return loss to values greater than 60 dB.
EAN | 8402090000014 |
---|---|
System | Optic Fiber |
Serie | 2m |
Fiber type | Singlemode |
Entorno | Interior |
Color | Yellow |
Product Brand | Tecatel |
Icon | Label | Size | Download |
---|---|---|---|
|
Ficha técnica del latiguillo de Fibra Óptica de 2 metros FO-070065 de Tecatel | 104.9 KB | Download |
