Patch Panel 24 ports RJ45 female CAT6 FTP

SKU
PANEL24PC6UFTP
Brands: Powergreen
Availability: In stock
24/48 Hours
€53.86 Tax included
Powergreen

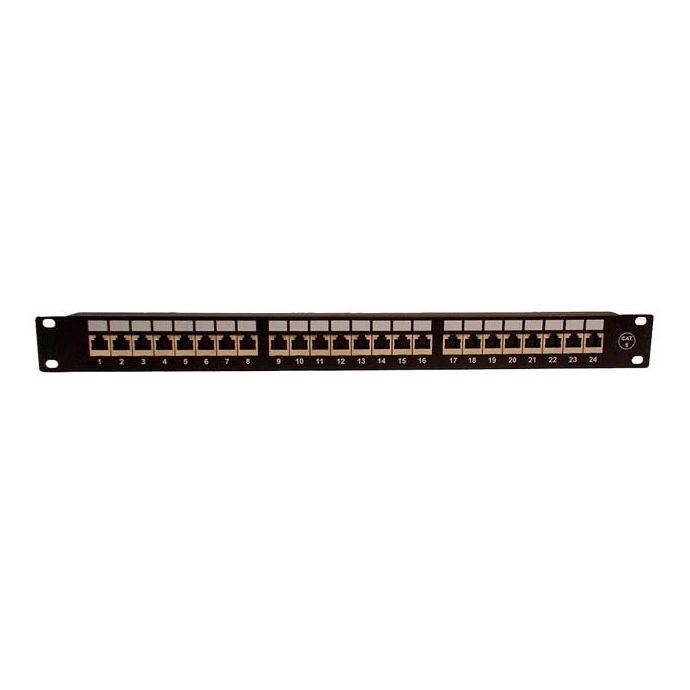

Panel 24 ports RJ45 female CAT6 FTP

Panel to be placed in a 19” rack cabinet. It contains 24 numbered RJ45 Cat6 FTP RJ45 ports but is also compatible with RJ45 Cat5 FTP. It comes in a 1U height.

It comes presented in black ABS color on the outside and its 50 micro-inch gold-plated phosphor bronze connectors make it very resistant.

The connection block supports AWG22-26. With this panel you will have all the wiring of your telecommunications installation organized and tidy.

Technical Specifications of the Panel 24 ports RJ45 female CAT6 FTP

Marca: Powergreen


Material:
1.Panel:1.6mm/SPCC with Black color painting.

2.RJ45 Housing:PBT.
3.RJ45 Contact material & finished:

3-1.Phosphor Bronze with50-60 micro-inch Nickel plated.
3-2.Contact area:Min.3mm 50micro-inch Gold plated.

4.IDC House: PC.
5.IDC Terminal material & finished:

5-1:Phosphor Bronze with 50 micro-inch Tin-Lead plated. over 50-60 micro-inch Nickel plated.
5-2.Krone tool compatible.
5-3.Use for 22-26AWG stranded and solid wire.

6.Jack Bracket Set:ABS,Black color
Performance:
a.The IDC color combine two wirings of T568A & T568B. b.Insertion Force:900 grs for 8 contacts.
c.Retention Strength:7.7 kgs between Jack and Plug. d.Operation Temperature:-40°C to 70°C
e.Durability:

e-1.Jack:750 cycles Plug-Jack mating and unmating test,Insertion cycles at 20 cycles/minute
max.Contact resistance test per 100 cycles.
e-2.IDC:Max.200 punching times.

f.The Cat.6 performance is in compliance with the ANSI/TIA/EIA 568 B.2 standard.

More Information
EAN8436539918066
SystemRack Accessories
SERIE19"
ColorBlack
Width19"
Rack typeRack cabinete
Rack accessoriesPanels
FrameWall
Product BrandPowergreen
