UAP Splitter EasyF 6D 13dB Televes
€16.86
Tax included

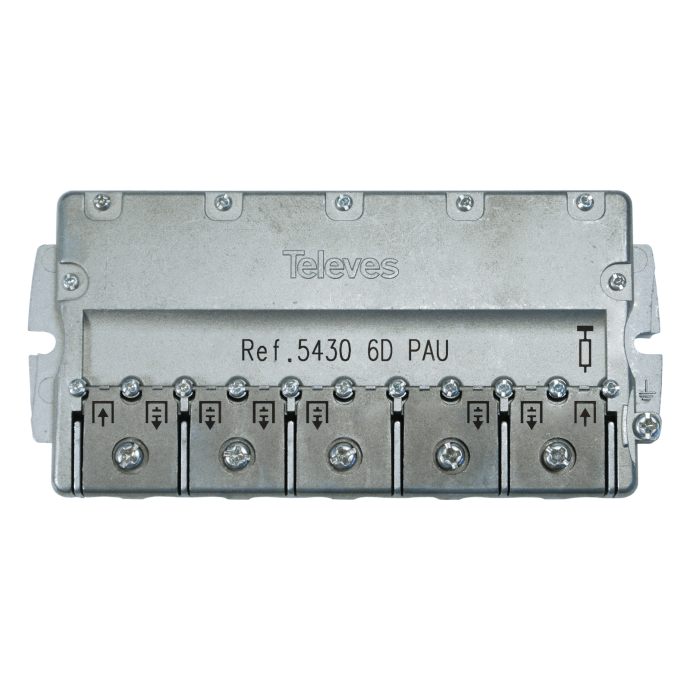

PAU + 6-way EasyF splitter
PAU 5430 6-way Televes distributor with EasyF flange connection, easy to install and without connectors.
This passive equipment has a maximum loss of 14dB and is ideal for ICT installations with satellite and terrestrial signal by two trunk cables.
The PAUs always have 2 inputs to insert both cables and do not offer DC current pass for pre-feeding.
24/48 Hours
Televes 5430 6-Output PAU Technical Specifications
- EasyF connection system: easy to install, savings on mounting
- Made of Zamak, high shielding
- Outstanding reliability: automated manufacturing using new generation micro-components
- Improves through losses
- Outstanding electrical behaviour: impulsive noise reduction
- Grounding screw provided
- DC pass from the outputs to the input
| Frequency range | MHz | 5-2400 | |||
| 5-47 | 47-862 | 950-2400 | |||
| Number of outputs | 6 | ||||
| Through loss | S1/S2 | dB | < 14 | 14 | 14 |
| S3/S4 | < 13 | 12 | 12 | ||
| S5/S6 | < 16 | 13 | 11 | ||
| S7/S8 | - | - | - | ||
| Tap loss | >30 | >28 | >28 | ||
24/48 Hours
| EAN | 8424450119006 |
|---|---|
| System | DTT & SAT |
| SERIE | Brida Connector |
| Color | Gray |
| TV-SAT Distribution Equipment | UAP |
| Entorno | Interior |
| TV-SAT Distribution Connection | Flange |
| Outputs | 6 |
| Input signal | DAB, FI, FM, UHF, VHF |
| Insertion Loss (dB) | 13 |
| Current bypass | Yes |
| Product Brand | Televes |
Write Your Own Review
| Icon | Label | Size | Download |
|---|---|---|---|
|
Ficha técnica del PAU repartidor 6 salidas 5430 de Televes | 118.6 KB | Download |
