UAP Splitter F 3D 9dB FTE
€6.26
Tax included

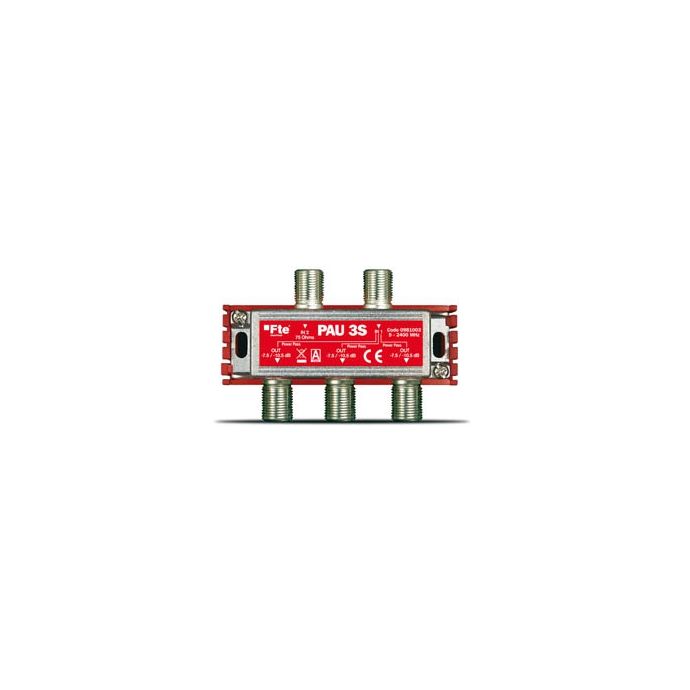

UAP Splitter 3 outputs type F of 9dB FTE PAU 3S
UAP is defined as a User Access Point, that is, it is the point where the community installation ends and the user installation begins. These two PAUs are designed for installations that are governed by ICT regulations, with two independent distribution lines, and depending on the type of interior installation, one or the other is selected.
This UAP also performs the function of a distributor by having 3 F-type outputs. Each output has an attenuation of 7.5dB for Terrestrial and 10.5dB for Satellite (9dB on average).
Fte
24/48 Hours
Technical Specifications of the PAU 3-outlet FTE splitter
|
|
PAU-3 S |
|---|---|
|
Códe |
0981003 |
|
Frequency range |
5-2400 MHz |
|
Number of inputs / outputs |
2 / 3 |
|
Through loss |
5-862: < 7,5 dB |
Fte
24/48 Hours
| EAN | 8436018446134 |
|---|---|
| System | DTT & SAT |
| SERIE | F-connector |
| Color | Red |
| TV-SAT Distribution Equipment | UAP |
| Entorno | Interior |
| TV-SAT Distribution Connection | F |
| Outputs | 3 |
| Input signal | DAB, FI, FM, UHF, VHF |
| Insertion Loss (dB) | 10 |
| Current bypass | Yes |
| Product Brand | Fte |
Write Your Own Review
| Icon | Label | Size | Download |
|---|---|---|---|
|
FTEPAU3S Ficha Técnica | 256.3 KB | Download |
