Power supply 220 mA, 12 Vc, 1 output,

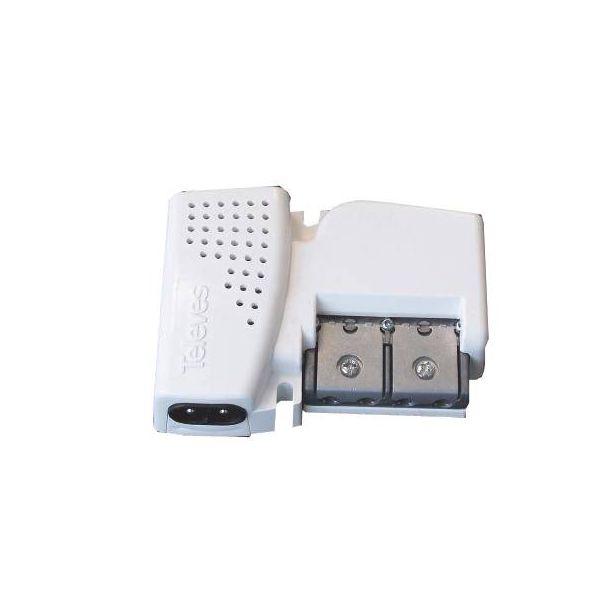

Power supply 12V / 220mA
Do you have a mast amplifier that works at 12v and you need a power source? The source for housing 12V (220mA) 5796 of Televes, sends power through the input coaxial cable, allowing in turn the passage of the TV signal.
It is inserted into the installation to feed mast amplifiers or a BOSS system. It is compatible with amplifiers with satellite mix (FImix), as it automatically detects in its output the existence of a LNB (voltage and tone) management signal generated by a receiver, and lets it pass to its input.
This source is the one recommended with the 561601 mast amplifier for terrestrial and satellite signal mixing.
Technical Specifications of the 12V/220mA Power Supply
The 5796 power supply has functionality FImix allows you to operate in a satellite installation respecting the power of the LNB
What technical characteristics does the 5796 power supply have?
- High-performance switched source: consumption savings of up to 40%
- Very low consumption
- Aesthetic design and ultra-reduced size: installable in 100x100mm junction boxes
- EasyF connection system
- Fully automated manufacturing and subjected to rigorous quality controls
- Screw on the wall
In this video we explain how this power supply works.
What technical specifications does the 5796 power supply have?
|Frequency range||MHz||5 ... 2400|
|Tension||V~||196 ··· 264|
|Network frequency||Hz||50 - 60|
|Total AC consumption||W||3.7|
|Operating temperature range||ºC||-5 ... +45|
|System||DTT & SAT|
