Power Supply 230Vac/12Vac+18Vdc-1.5A OUTLET

SKU

FER4810OUT

Brands: Fermax

Availability: Out of stock

Delivery: Consult

€129.37 Tax included

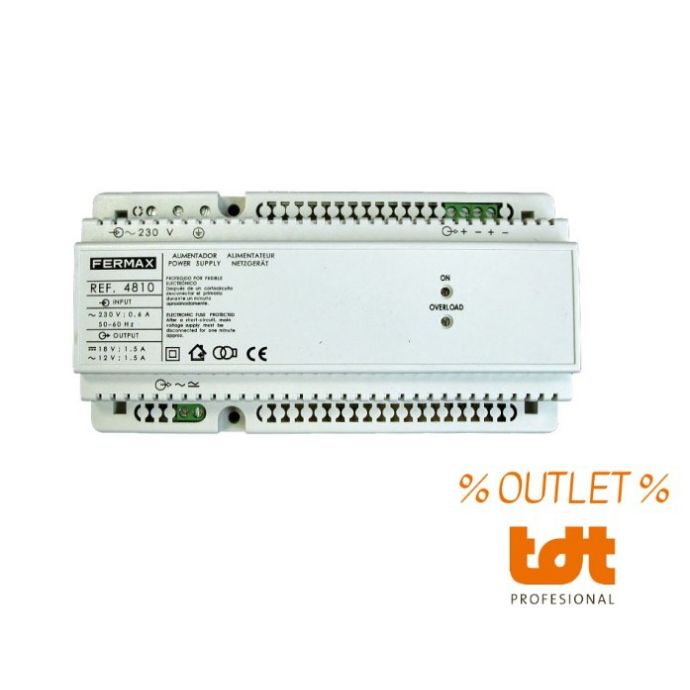

OUTLET: Fermax 4810 230Vac/12Vac+18Vdc-1.5A Power Supply

Power supply to power the different equipment of a Fermax door entry / video door entry system. Equipment in DIN10 rail format to be installed inside an electrical equipment box or screwed into the wall.

This power supply has a 12V AC output + two 18V DC outputs, with an output current of 1.5A. The source has two LED indicators to indicate if it is operating, if there is an overcurrent or a short circuit.

What is DTTprofesional OUTLET?

Our Outlet category is made up of products from our customers' returns, which are in perfect condition and have been tested by our technical department to guarantee their correct operation. The product packaging may present bumps or the product may not be shipped in its original packaging. The products in our Outlet include a special discount and have the same guarantee as new products.

Details

OUTLET: DIN10 230Vac / 12Vac + 18Vdc-1.5A Power Supply for Fermax installations

What technical specifications does the Fermax 4810 Power Supply have?

DIN 10 dimensions: 175 x 90 x 60 mm
Input voltage: 230 Vac
Output voltage: 12 Vac + 18 Vdc
Output current: 1.5A
Input protection: PTC and 2.3A fuse
Output protection: Electronic limitation for overload and short circuit
Input frequency: 50-60 Hz
It has two operating indicator LEDs:

Led ON lit: indicates that the feeder is working.
Led OVERLOAD on: indicates maximum current exceeded, (it will be necessary to reduce the load of the installation or add additional power supply (s)).
ON + OVERLOAD led flashing: indicates short circuit.

More Information
