Promax RANGER MINI Field Meter

SKU
PRORANGERMINI
Brands: Promax
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€1,934.79 Tax included
Promax

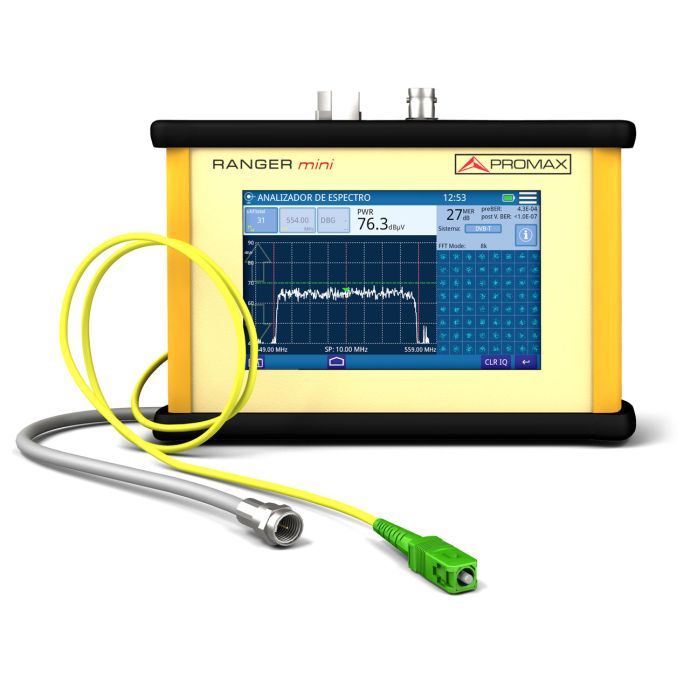

Promax RANGER MINI Field Meter for TV, Satellite and CATV

Economic and ultra compact professional RANGER mini field meter, designed to measure TV, Satellite and CATV reception systems (digital and analog), as well as FM radio.

Multi-standard equipment for use anywhere in the world, compatible with DVB-T/T2, DVB-S/S2 and ISDB-T standards. Compatible with DOCSIS 2.0 / 3.0 / 3.1 and QAM measurements.

This meter offers MER, preBER and postBER power measurements on the same screen alongside the constellation diagram to examine reception quality at a glance.

Small, handy and lightweight touchscreen meter. Reinforced to withstand impacts and adverse weather conditions during outdoor use.

Optionally available integrated fiber optic analyzer, ask us for price.

RANGER MINI Field Meter for TV, Satellite and CATV networks, DOCSIS compliant

What technical specifications does the Promax RANGER MINI Meter have?

TUNING From 5 to 2700 MHz (by frequency or by channel)
BANDWIDTH RESOLUTION 230 kHz or 2 MHz
UNITS dBmV, dBµV, dBm
LNB SUPPLY 13 V, 18 V, 22 kHz tone
CHANNEL PLANS CCIR, EIA, HRC, IRC, OIRL, FCC
(up to 10 standard and 30 customized)
STANDARDS AND MEASUREMENTS (analogue)
Terrestrial and Analogue TV Level, A/V, C/N
Analogue CATV CSO, CTB, HUM
FM Level, Audio carrier demodulation
STANDARDS AND MEASUREMENTS (digital)
Terrestrial DVB-T Power, MER, preBER, VBER, Constellation
Terrestrial DVB-T2 Power, MER, preBER, LBER, Constellation
ISDB-T Power, MER, preBER, LBER, Constellation
Satellite DVB-S, DVB-S2 Power, MER, preBER, LBER, Constellation
CATV
  QAM Annex A, QAM Annex B Power, MER, preBER, postBER, Constellation
  DOCSIS 2.0, DOCSIS 3.0 Power, MER (over QAM channels), BER, Constellation, Upstream channel analysis
  DOCSIS 3.1 Power, MER (estimated COFDM), Constellation, Upstream channel analysis
OPTICAL FIBRE (optional)
Optical band From 1100 to 1700 nm
Optical power meter Calibrated at 1310, 1490, 1550 and 1625 nm
Optical to RF converter Conversion to RF band from 45 MHz to 1700 MHz
Measurement tools Spectrum analyzer, SCAN, TILT, Downstream DOCSIS analyzer
FUNCTIONS SCAN, TILT, Input voltage, RF power meter
INPUTS AND OUTPUTS RF, USB, Ethernet, Power supply
SCREEN 5” Touch screen TFT LCD
BATTERY OPERATION TIME More than 4 hours in continuous mode
MECHANICAL FEATURES
Dimensions 177 (W.) x 117 (H.) x 30 (D.) mm
Weight 700 gr
More Information
EAN8400735200074
SystemField Meters
SERIERanger
ColorYellow
DVB-CYes
DVB-SYes
DVB-TYes
FibraYes
CCTVNo
Product BrandPromax
