MOSAIQ6 field meter for DVB-T/T2/S/S2/C + CI + FO Selective

SKU

TEL596111

Brands: Televes

Availability: On request

Delivery: 1 to 7 days

€4,813.38 Tax included

MOSAIQ6 professional Field Meter DVB-T/T2/S/S2/C + CI + Selective FO 1550nm

With MOSAIQ6 596111 from Televes, technicians have at their disposal a powerful tool capable of measuring, analyzing and diagnosing terrestrial signals (DVB-T/T2), satellites (DVB-S/S2), cable (DVB-C), common interface (CI) and selective Fiber Optic up to 1550nm for GPON networks.

Tool valid for both Category A Installer A and Category F Installer.

This Field Meter stands out for its 8" Full Color touch screen with gesture control and its Ultra-fast signal processing (<10ms). Other interesting details of MOSAIQ6 is the flexibility it offers the user, allowing the entire data display to be customized with various formats and highlight those that are most interesting according to the technician's preferences.

As for the battery, it is removable and has a range of 4 hours. The meter can continue to be used while the battery is charging, even if it is not connected. This equipment has a thoroughly studied design to be able to access the menu and all functions with one hand. If you do not want to carry the equipment, it is compatible with tripods with a standard 1/4" thread. The carrying bag is included with the purchase of the equipment.

MOSAIQ6 is a robust field meter manufactured with high quality materials, so it is fully prepared to work outdoors in any conditions. Its screen is waterproof and its connectors are protected with caps and a central cover.

Click on this link to see a video summary with the features of MOSAIQ6.

X-Change Televes Plan. Upgrade your Professional Field Meter

Obtain your professional field meter with great discount!! You just have to hand in your old meter, regardless of its brand, model or condition.

¡Hand in an old field meter and get your professional discount!

Details

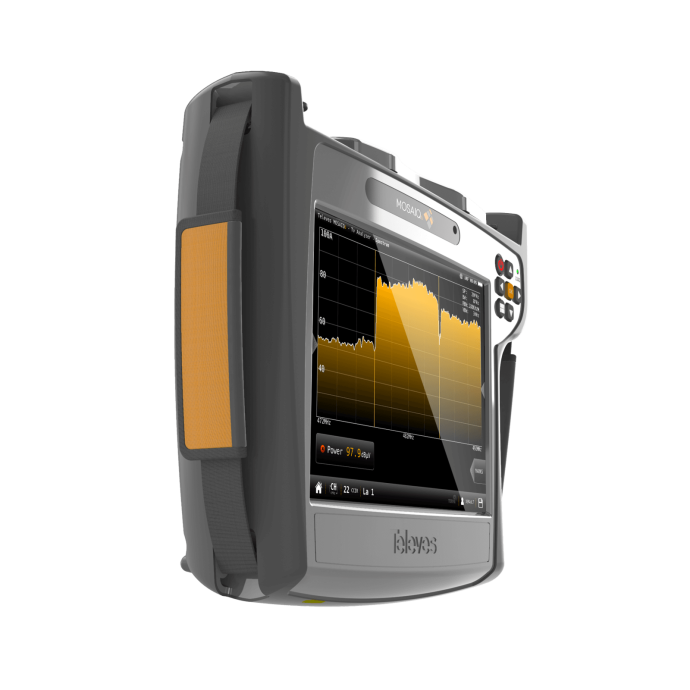

Televes MOSAIQ6 professional field meter with touch screen and Ultra-fast signal processing.

What are the functions of the MOSAIQ6 field meter by Televes?

Ultra-Fast Spectrum Analyzer

Scanning times of <10 ms and high dynamic range of> 50dB. Equipped with advanced functions for the detection and analysis of signals between 5 MHz and 3300 MHz configurable by the user.

Waterfall

Graphical representation of the signal in time and color frequency. Ideal tool to analyze interferences or fades difficult to observe in spectrum mode.

Constellation

It helps to detect the presence of noise, phase jitter, interference and other problems that can affect the quality of the signal by reducing the MER. The representation of the echoes allows them to be located in the DVBT / T2 terrestrial signal, which can degrade the BER measurement considerably.

Multi-standard

MOSAIQ6 analyzes any analog and digital signal, both in terrestrial band, satellite or cable. Performs all measurements of FM, IPTV fiber optic, WiFi, DVB-T / T2, DVB-C Annex A, B and C and DVB-S / S2 / S2X. DAB and DAB + signal analysis can optionally be included.

Optical Measurements

Thanks to the optical receiver (configurable as Selective or Non-Selective) it is possible to measure power and optical attenuation at wavelengths 1310nm, 1490nm and 1550nm. Unbeatable tool to analyze RFoG installations.

IPTV

It allows to demodulate and analyze Unicast and Multicast IPTV flows, showing the video and indicating the total Bit Rates and of each service. It also presents all the information of each of the services, such as SID, VPID, AID, video profile, or bit rate for audio and video. Measures of the protocol such as UPD Payload Bitrate, IP Payload Bitrate and Packet Arrival Minimum are also analyzed.

Network tools

This functionality offers several network control and monitoring utilities, which can be displayed in mosaic mode. All network information at once, on a single screen (IP, DNS, gateway, connection mode ...).
These tools allow recognition of a network by auditing the response time (latency or ping) and the connection speed (speed test, upload / download).
In addition, they also facilitate the detection of connectivity problems by scanning connected equipment (ARP scan) and mapping their ports, whether open or closed, to determine their accessibility (NMAP).

LTE Check

Analyze the influence of the LTE signal on DTT channels, detecting the need to incorporate filters. If the installation requires it, the LTE Check function will recommend the incorporation of a filter, simulating the situation of the resulting spectrum upon incorporation.
Prepared for situations of LTE700 (5G) and LTE790 (4G).

Pass / Fail Indicators

Reduce installation errors with the Pass / Fail screen indicators, a graphical form that facilitates and speeds up the interpretation of measurement results. Different thresholds are available depending on the part of the network to be analyzed: header, central amplifier, branch, connection records, user housing, etc. In addition to the preset values, you can also customize your own threshold values.

100% Automatic

Connect the input signal to your MOSAIQ6 and, in a few seconds, the meter will automatically fully engage the signal. Looking for the standard first and then all its parameters.
It is no longer necessary to indicate to the meter the standard of the signal or its parameters. With MOSAIQ6 it is as simple as connecting the RF cable and the meter automatically finds the standard (DVB-T / T2, DVB-C, QAM-B, ISDB-T for terrestrial band and DVB-S / S2 / S2X for satellite band, IPTV, etc.) thus all the parameters related to the standard.

Satellite Identification

Just connect the RF cable to your MOSAIQ6 and you can find out which satellite your antenna is pointing at. No need for checks or previous configurations.

Echoes

In the acquisition of DVB-T and DVB-T2 signals, it is very important to check that there are no echoes that can cause problems in receiving them. The MOSAIQ6 allows to visualize the echoes of the received signal, allowing the installer to minimize them as much as possible to obtain an optimal reception of the signal.

User Profiles

MOSAIQ6 allows you to save multiple profiles depending on the type of installation you should work on. In this way you will not have to select every time all the necessary parameters to perform your measurements. You just have to select the profile you want to work with and all the meter parameters will be set automatically.

Measurement storage: Macrologs and Datalogs

Save all the details of the signal in your 32 GB of internal memory. While taking measurements or exploring for possible problems, you can save sample data of the signal parameters for further analysis, or simply to record them and make your work reports.
And not only will the measurements be saved, the screenshots are also saved, just as they were at the time of recording. In addition, you can program a Macrolog, so you can repeat and store the measurements only by indicating the time interval between two consecutive measurements.
For convenience, take the information with you without transporting the meter. Simply export the data to an external USB memory.
