Rack Rack Wall/Floor 19" 8+2U Depth 450 (Disassembled)

SKU
TEL533107
Brands: Televes
Availability: In stock
24/48 Hours
€117.10 Tax included
Televes

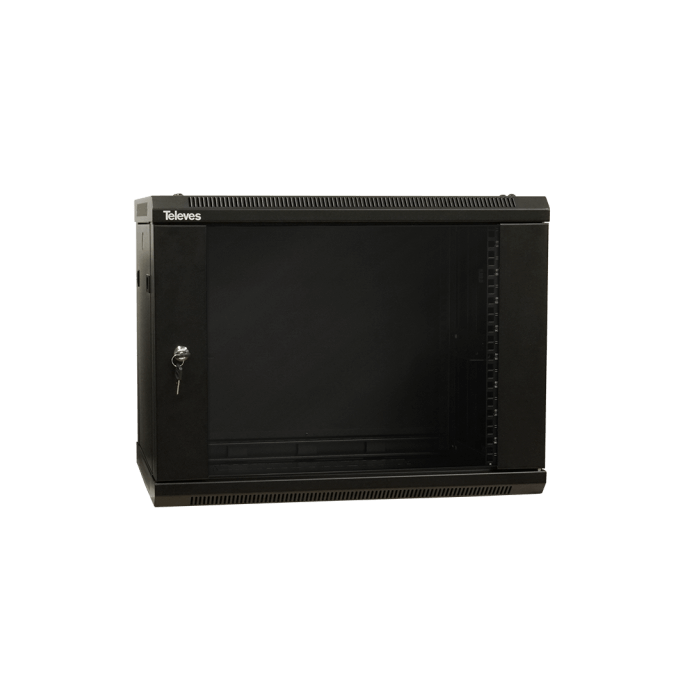

Wall/Floor Rack 19" 8+2U 450mm Depth Televes 533107

High resistance and durability rack cabinet to organize and protect fiber optic, data or coaxial network equipment, being able to group the different technologies in the same rack. Thanks to its tempered glass door, the equipment is visible and protected under lock and key in this secure structure.

This rack has a capacity of 8U and has an extra 2U to place 1U cable gland panels (included) at the top and bottom, making a total of 10U usable.

Rack designed for wall or floor installation, capable of supporting a maximum load of 60kg inside. Dimensions (W x H x D): 600mm x 460mm x 450mm. It has a reversible and removable front door and hinged folding side doors.

It offers good natural ventilation to accommodate active equipment, with the possibility of forced ventilation using fans.

ATTENTION! This rack is supplied disassembled in a 680x550x170mm box.

19" wall/floor rack cabinet with 8+2U capacity and 450mm depth (Disassembled)

What are the main characteristics of the Televes Rack 533107?

  • High strength and durability: made of steel, with a coating based on polyester resins and lead-free pigments
  • Loading capacity up to 60kg
  • Extremely easy installation and use: reversible and removable front door with flexible sockets and hinged folding side doors
  • Installation of different types of panels or equipment: lateral profiles are depth-adjustable
  • Safety: Tempered glass, lockable hinged front door
  • Natural ventilation, with forced ventilation option
  • Laser marking: numerical identification of each "U"
  • Black colour (RAL 9004)
  • Includes 1U cable panels (2 units)
  • Upper and bottom adjustable covers for cabling
  • Indoor installation (IP20)
  • A 120x120mm ventilation kit can be incorporated for the installation of active equipment, such as headends
More Information
EAN8424450210345
ColorBlack
Units8
Width19"
Depth450 mm
Rack typeWall
FrameWall
Product BrandTeleves
