Wall/Floor Rack 19" 13+2U Depth 450 (Disassembled)

SKU

TEL533112

Brands: Televes

Availability: On request

Delivery: 1 to 7 days

€154.88 Tax included

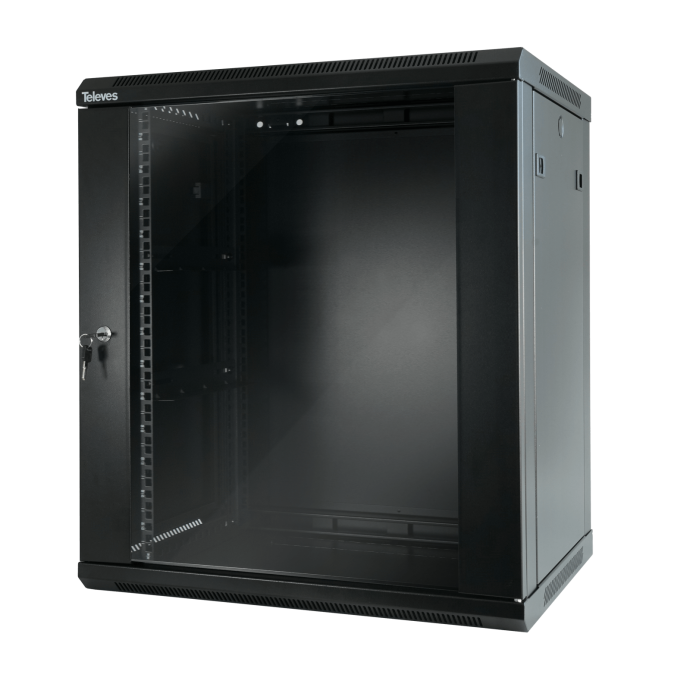

Wall/Floor Rack Cabinet 19" 13+2U Depth 450mm Televes 533112

High resistance rack cabinet to house active or passive equipment of different technologies: fiber optic, data cable and coaxial cable. Its tempered glass door allows equipment to be visible and protected under lock and key.

13U capacity rack + 2U extra usable at the upper and lower ends, being a real 15U rack cabinet. In addition, with the purchase of this rack, two 1U cable gland panels are included.

Rack designed for wall or floor installation, supporting loads of up to 60kg inside. Dimensions (W x H x D): 600mm x 682mm x 450mm. It has a reversible and removable front door and hinged folding side doors.

It offers good natural ventilation to accommodate active equipment, with the possibility of installing fans.

ATTENTION! This rack is supplied disassembled in 2 boxes of 680x550x130mm and 790x650x140mm respectively.

Details

19" wall/floor rack cabinet with 13+2U capacity and 450mm depth (Disassembled)

What are the main characteristics of the Televes Rack 533112?

High strength and durability: made of steel, with a coating based on polyester resins and lead-free pigments
Loading capacity up to 60kg
Extremely easy installation and use: reversible and removable front door with flexible sockets and hinged folding side doors
Installation of different types of panels or equipment: lateral profiles are depth-adjustable
Safety: Tempered glass, lockable hinged front door
Natural ventilation, with forced ventilation option
Laser marking: numerical identification of each "U"
Black colour (RAL 9004)
Includes 1U cable panels (2 units)
Upper and bottom adjustable covers for cabling
Indoor installation (IP20)
A 120x120mm ventilation kit can be incorporated for the installation of active equipment, such as headends
