5-band 2G/3G/4G mobile signal repeater

SKU
KITPF5B-6513
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€1,294.13 Tax included
TDTprofesional

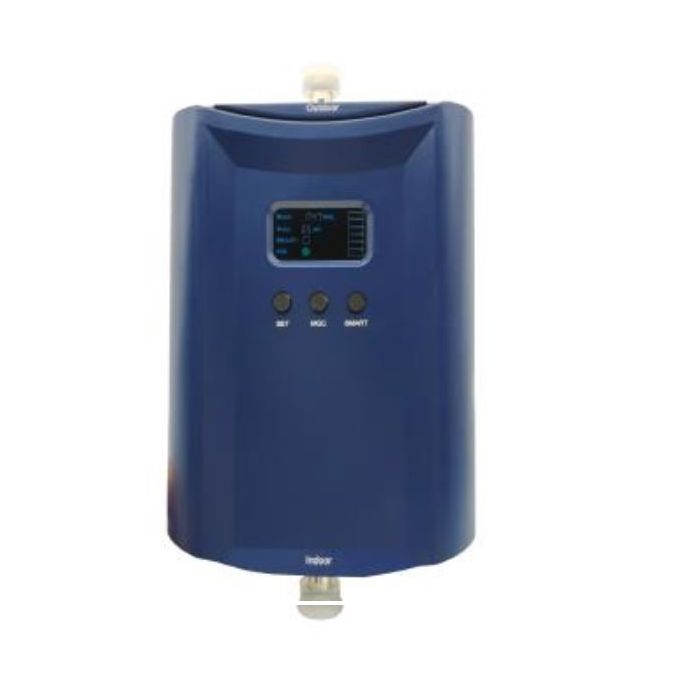

2G/3G/4G 5-band coverage repeater PF5B-6513

With this kit you can improve the coverage in a building where there is currently very little. The kit includes a repeater that we will put outside, where there is coverage, from there, with a cable we will reach our building, where we will place the amplifier, providing us with an improvement in mobile coverage.

It works in the following frequencies: 800/900E/1800/2100/2600mHz. It reaches a coverage range of about 500m2. It features an attenuation of 15dB/5dB per step.

It has an intelligent mode in which the gain is automatically adjusted on both channels according to the surrounding conditions.

The content of the kit:

  • Signal Repeater with power supply
  • 2 x 10m coaxial patch cord
  • Amplifier
  • Omnidirectional indoor and outdoor antenna.



Technical Specifications of the 2G/3G/4G 5-band coverage repeater PF5B-6513





Maximum Output Power



10 dbm

13 dBm

Spec. Electrical



Subida (Mhz)

Bajada (MHz)

Frequency range

900

880-915

925-960



1800

1710-1785

1805-1880



2100

1920-1980

2110-2170



LTE 800

832-862

791-821



LTE 2600

2500-2570

2620-2690

MCG(Manual dimming with buttons)



Ø15dB/ 5dB per step



ALC(Automatic level control)



Ø20 dB,auto switch-off from 20 dB



Emisión de Espúreos

9KHz-1GHz

< -36dBm



1GHz-12.75GHz

< -30dBm

Frequency Stability

< 0.01 ppm

Noise Figure

< 8dB

VSWR

< 3.0

Group Delay

< 1.0 µs

Smart features

Standard

ISO(Indoor antenna and outdoor antenna)

Red or red flashing every 1s when the shielding is not sufficient between antennas. Stays lit when normal

Smart mode

Automatically adjusts the gain on both channels based on the specific environment

Output signal power

The output signal strength is displayed with bars

Alarm Led

Standard

Power Led

Power indicator

ALC led

Orange , ALC 1-5dB, Red ALC 15dB-20dB



Red LED turns off after 5 seconds

Mechanical Specifications

Standard

Input/Output Ports

N female

Impedance

50 Ohms

Operating temperature

-25°C -+55°C

Environmental conditions

IP40

Dimensions

175x131x33 mm

Weight

Aprox 0.7Kg; Package weight: 1.3Kg

Power suppy

Input 100-240Vca; Output: 9Vcc/3A







More Information
Product BrandTDTprofesional
SystemTelephone
SERIEBasic Telephony
TelephonyRepeater
