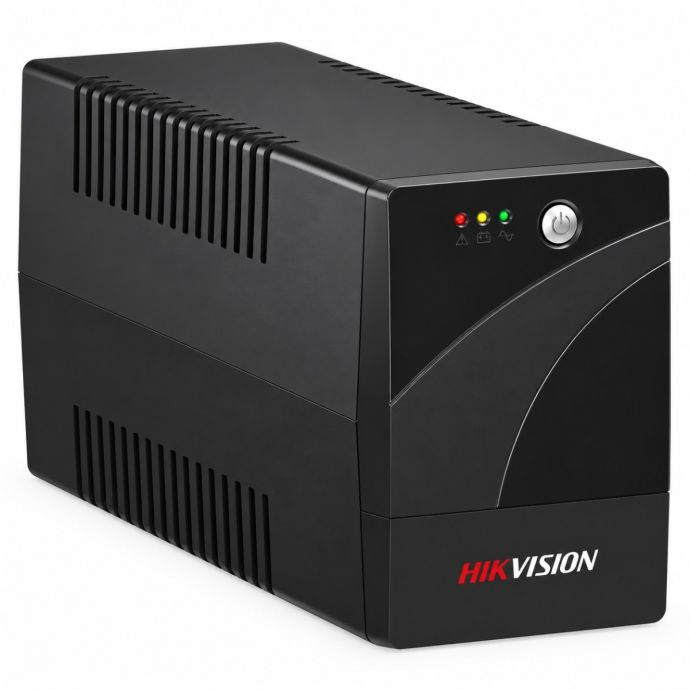

Hikvision 1000VA/600W UPS with AVR and Built-in Battery

Hikvision DS-UPS1000-R 1000VA/600W UPS with AVR and Built-in Battery

The Hikvision DS-UPS1000-R provides backup power and electrical protection for equipment that needs to remain protected against blackouts and mains power irregularities. With a capacity of 1000 VA / 600 W, it is designed for video surveillance systems, recorders, network equipment and other critical electronic devices, providing valuable time to maintain operation or perform a controlled shutdown.

Its integrated Automatic Voltage Regulator (AVR) stabilises voltage fluctuations without unnecessarily using the battery. The UPS features a wide input voltage range, 220/230 VAC ±10% output and simulated sine wave output. In the event of a power failure, it switches to battery operation in ≤10 ms, helping connected equipment remain powered without an immediate shutdown.

The unit incorporates a 12 V / 9 Ah lead-acid battery, two Schuko outlets and a specified typical backup time of 20–25 minutes at a 100 W load. It also provides surge, overload, discharge and short-circuit protection. This makes the DS-UPS1000-R particularly suitable for installers working with Hikvision CCTV systems, where maintaining power to an NVR, DVR or associated network equipment can be essential during an electrical fault.

Overall, the DS-UPS1000-R combines battery backup, AVR voltage regulation and electrical protection in a compact solution for professional security and telecommunications installations. It is intended for new installations and system expansions, rather than as a replacement part, and provides an intermediate power option for projects that do not require a higher-capacity UPS such as the Hikvision DS-UPS1200-R UPS.

Reference: DS-UPS1000-R
