SAT Line Amplifier 40dB TERmix Engel AM5191

SKU

ENGAM5191

Brands: Engel Axil

Availability: In stock

Delivery: 24/48 Hours

€84.97 Tax included

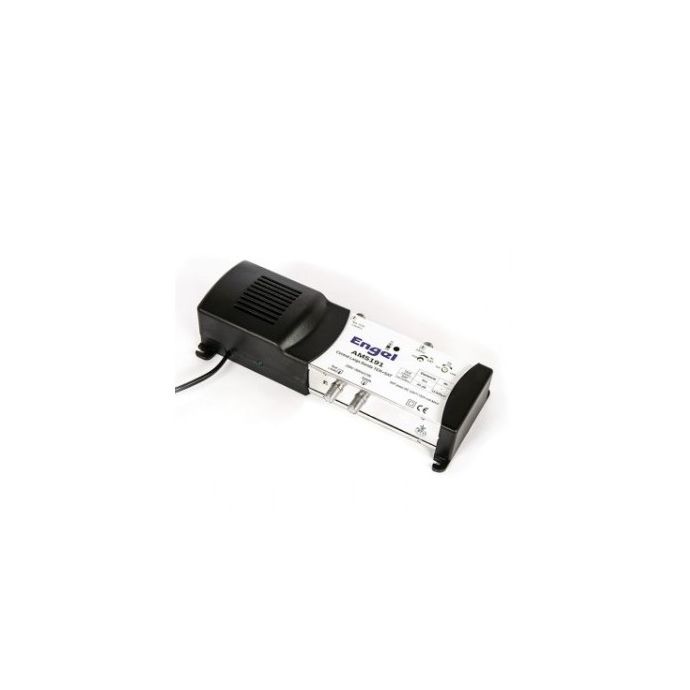

40dB Satellite Line Amplifier with TERR mix, Engel AM5191

Line Amplifier for satellite FI (950-2150MHz) with Terrestrial mix V/UHF (5-860MHz), designed for DTT-only communities that want to install a parabolic antenna to also watch satellite channels.

This AM5191 amplifier from Engel amplifies the satellite band and mixes it with the terrestrial one to distribute it to all the users of the building through the existing wiring. It offers 40dB of gain in SAT, adjustable -20dB, and supports up to 119dBμV output level. The amplifier itself powers the LNB, selecting the voltage (0-13V) and the tone (0-22kHz).

Compact central unit with dimensions 255x115x65mm with integrated power supply and type F connection system. Includes test output (-30dB) to carry out tests without interrupting the service.

Amplifier suitable for watching Movistar channels through the Astra 19.2º East satellite.

Details

Satellite Line Amplifier 40dB 119dBμV with Terrestrial mix, ideal for Movistar channels

What technical specifications does the Engel AM5191 Amplifier have?

Inputs: 2
Covered Band: 950/2150 MHz
Gain: VHF / UHF: Mix FI / IF 4
Maximum Output Level: FI / IF - 119
Mains Voltage 230 ± 5%
Network Consumption: 17W
Noise Factor: VHF 6.5 - UHF 7.0 - FI / IF 6.5
Connection: "F" / "F" type plugs
DC To SAT: SAT DC pass 13V = / 320A Max
Internal power supply for LNB: on / off 13V / 0V
Internal generator: on / off 22KHz
Dimensions: 255x115x65 mm

More Information

More Information
EAN	8413173442621
System	Satellite
SERIE	F Connector
Color	White
Type	Line amplifier
Entorno	Interior
Input signal	FI
# Inputs	2
Outputs	1
Gain	40
Max. output level Ganancia (dB/uV)	119
LTE compatible	No
Current bypass	Satellite
Product Brand	Engel Axil
