NevoSwitch Tap 5 inputs (TDT + VL/HL/VH/HH) 15dB

Availability: On request
SKU:
TEL714902
1 to 7 days
€52.84 Tax included
Televes

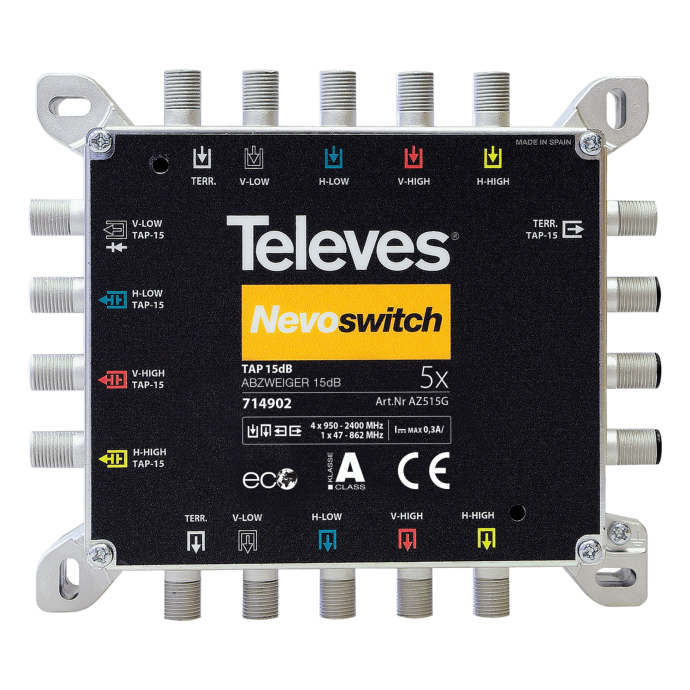

NevoSwitch Tap 5 inputs 15dB Televes 714902

NevoSwitch tap with 5 inputs: 1 terrestrial DTT and the 4 polarities of a Satellite (VL/VH/HL/HH). It has 5 distribution outputs with 15dB of losses and 5 through outputs. It allows the passage of current in all the inputs and outputs of passage, also in the low vertical derivative output (VL) and terrestrial.

This device complements the NevoSwitch range of multiswitches, so that the installation can be extended to a greater number of users, optimizing the signal that would reach each one.

1 to 7 days

NevoSwitch Tap 5 inputs 15dB attenuation, with 5 tap outputs and 5 through outputs.

NevoSwitch Televes 714902 tap main features:

  • Current circulation in all inputs and all outputs with DC bypass
  • Current circulation in the vertical low (VL) bypass and terrestrial output
  • Low through losses
  • Very compact
  • Made of zamak
  • Input and output colour identification
  • Passive element that does no require power feeding

What technical specifications does the Televes NevoSwitch 714902 tap have?

Type 5x5x5
Frequency range MHz SAT 950 ... 2400
TERR 47 ... 862
Input level dBμV SAT -
TERR -
Through losses dB SAT 1,5 ±0,5
TERR 1,5 ±0,5
  Tap losses 1..8 /
9..16 / 17..24 /
25..32
dB SAT 17 ± 3
TERR 15 ± 1
Isolation dB H/V >25
Users >25
DC Pass -
Max. total consump. mA PSU -
SAT
STB
-
Temp. range ºC –5 ... +45 ºC
Protection level IP IP20
1 to 7 days
More Information
EAN 8424450173411
System Satellite
SERIE Nevoswitch
Color Black
Type Shunt
# Input satellites 4
# Terrestrial inputs 1
# Inputs 5
#User outputs 2
Gain (dB) 0
Loos (dB) 15
LNB type Quattro
Product Brand Televes
