Nevoswitch 5x5 MATV / FI amplifier with gain of 27 / 25dB

SKU
TEL714509
Brands: Televes
Availability: In stock
24/48 Hours
Free shipping
(Iberian Peninsula)
€155.42 Tax included
Televes

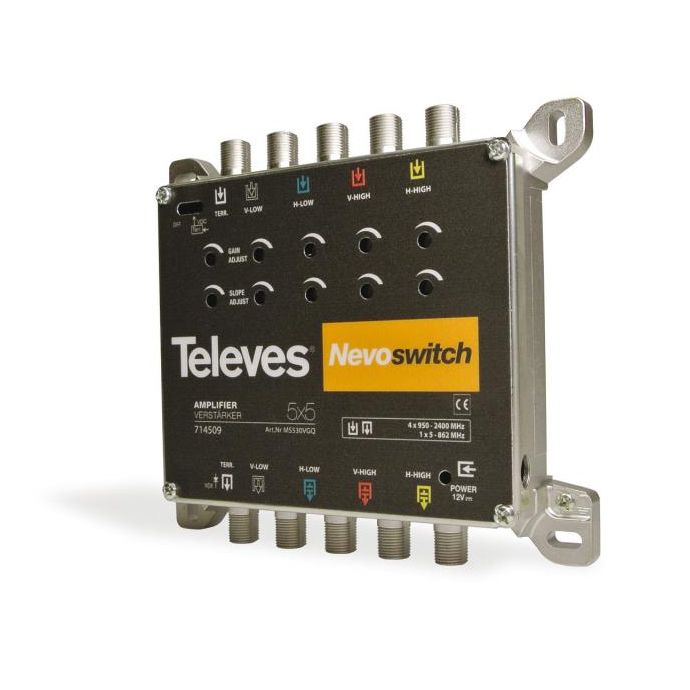

Televes 5 inputs and 5 outputs Nevoswitch amplifier

The Televes 714509 NevoSwitch amplifier is a 5-input amplifier (one terrestrial and the four polarities of a satellite) that allows increasing the number of users of the installation by optimizing the signal that reaches each one.

This Televes amplifier has an approximate amplification of 27dB in terrestrial and 25dB in satellite.

The Televes NevoSwitch amplifier allows, by means of a switch, to activate or deactivate the passage of current for the feeding of preamplifiers or active antennas.

NevoSwitch amplifier with 5 inputs (one terrestrial and the four polarities of a satellite) that allows increasing the number of users of the installation by optimizing the signal that reaches each one.

What technical characteristics does the 714509 amplifier have?

  • High output level
  • Switch to feed ground preamps (VDC) or not (OFF)
  • Adjustment of gain (10dB) and slope (7dB) in an individualized manner
  • The feeding is carried out by the VL input / output
  • Very compact
  • Made of zamak
  • Identification of colors at the entrance and at the exit
  • 12V power
  • Reduced consumption

What technical specifications does the 714509 amplifier have?

  • Type 5x5
  • Frequency margin MHz SAT 950 ... 2400
  • RF 47 ... 862
  • Input level dBμV SAT EN50083-3
  • IM35dBc 110
  • TERR DIN 45004-B 110
  • DB SAT gain 25
  • TERR 27
  • Regulation 10
  • Slope 0 ... 7
  • DB insulation> 25
  • Step DC In-Out / Out-In
  • Max consumption total mA PSU (3) 160
  • Temperature Range ºC -5 ... + 45
  • IP protection index 20
More Information
EAN8424450173398
SystemSatellite
SERIENevoswitch
TypeAmplifier
# Input satellites4
# Terrestrial inputs1
# Inputs5
#User outputs5
Gain (dB)31
LNB typeQuattro
Product BrandTeleves
Write Your Own Review
You're reviewing:Nevoswitch 5x5 MATV / FI amplifier with gain of 27 / 25dB
Your Rating
File Label Size Download
pdf Ficha técnica del amplificador NevoSwitch 714509 3.1 MB Download
