Streamer HDMI - HDMI to IP Converter

SKU
JOH8210
Brands: Johansson
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€516.08 Tax included
Johansson

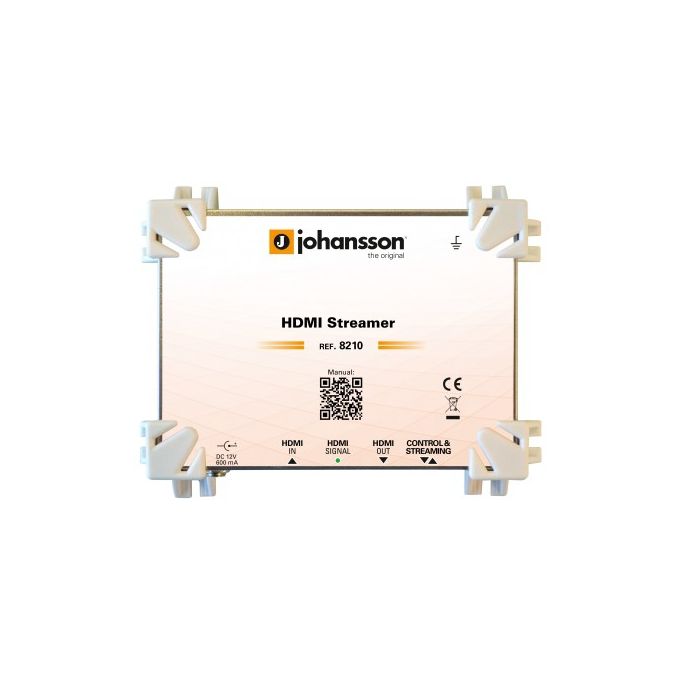

Streamer HDMI - HDMI to IP Converter Johansson 8210

HDMI to IP converter for real-time video and audio transmission on a local network or internet, on live web streaming platforms (Youtube, Twitch, Facebook ...).

This equipment allows you to view the video content from your preferred mobile device: smartphone, tablet, computer or TV. The user will only have to navigate to the dedicated web page for this purpose.

It is an ideal solution for local video where you have installed a CCTV video surveillance system, to have an information channel or to create your own transmission. For your visualization you do not need a mobile application or additional software.

HDMI to IP converter Johansson 8210 to stream live video for a local network or internet.

What are the main functions of the Johansson HDMI Streamer 8210?

  • Enable an HDMI source on your local network using the built-in web page (HLS unicast)
  • Multicast an HDMI source for an IPTV (UDP) application
  • Publish your live broadcast on an online platform (RTMP)
  • HDMI loop connection for simultaneous viewing on a local TV
  • Incorporates HDCP content protection system

What technical specifications does the Johansson HDMI Streamer 8210 have?

8210
Inputs - 1 x HDMI
Outputs - 1x IP Ethernet RJ-45 jack (for streaming+WebGUI)
1 x HDMI loopthrough
HDMI input - Video resolution : 576i up to 1080p
Video encoding : H264/AVC
Video bitrate Encoding: from 1 Mbps to 30Mbps
Audio encoding : AAC
Audio bitrate Encoding 32 -192 Kbps
Streaming port Mbps 10/100
Ethernet OTT encapsulation - HLS (Apple HTTP Live Streaming) (unicast)
Ethernet multicasting - Possible to output UDP multicast (requires external IGMP snooping equipment)
Simultaneous users - Up to 30
(depending on the bitrate and the network infrastructure)
Input resolution - Up to 1080p60
Supported playback 0 All HTML 5 browsers on Android/iPhone/Mac/PC/SmartTV/…
No need to install mobile application or additional software
Configuration - Network/login/input encoder settings/output multicast settings
Power consumption W 5
Operating temperature °C 0 to +50 (for indoor use only)
Dimensions mm 155 x 120 x 50 mm
Weight Kg 0.6
More Information
EAN8401382100012
SystemRed
SERIEFast Ethernet
ColorWhite
Network EquipmentBrackets and Accessories
Data SpeedFast Ethernet (10/100Mbps)
PoENo
Product BrandJohansson
