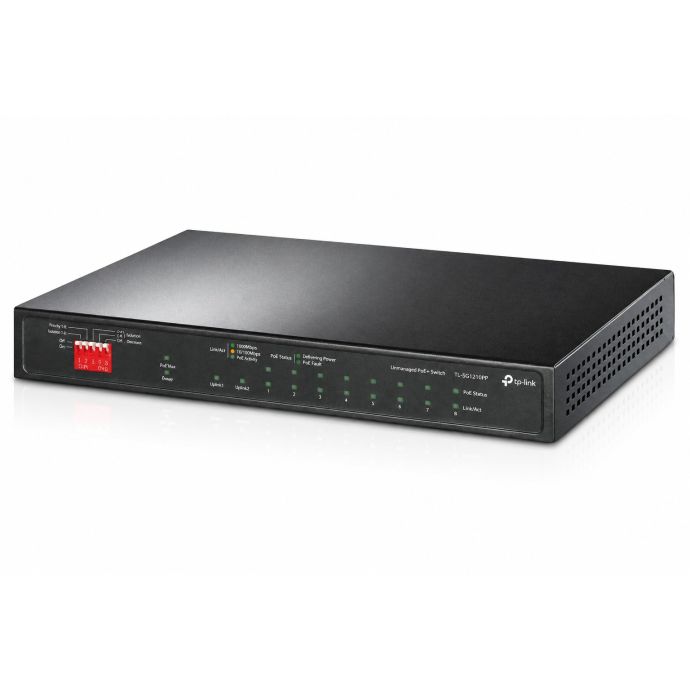

Unmanaged TP-Link switch with 8 Gigabit PoE+ ports, 2 uplink ports, and 1 SFP port.

SKU
TL-SG1210PP
Brands: Tplink
€110.74
Tax included
Availability: In stock
1 to 7 days

Unmanaged TP-Link switch with 8 Gigabit PoE+ ports, 2 uplink ports, and 1 SFP port.



The TP-Link TL-SG1210PP is a professional solution designed for IP surveillance installations, corporate networks, and PoE deployments where stability and extended range are essential. Thanks to its 8 Gigabit PoE+ ports, capable of transmitting both data and power through a single Ethernet cable, and its 123 W total PoE power budget, it can efficiently and safely power IP cameras, access points, and VoIP phones without requiring additional power supplies.

This unmanaged switch also features 2 Gigabit uplink ports and 1 SFP port, enabling high-speed uplinks and flexible network expansion through fiber optic connections. Its advanced Extend Mode up to 250 meters makes it ideal for CCTV installations where cameras are located far from the communications cabinet.

The one-click traffic isolation system improves both security and network performance by preventing interference between connected devices. Its PoE Auto Recovery function automatically reboots frozen PoE cameras or devices, reducing technical incidents and maintenance visits. This model is especially suitable for professional CCTV installers and IP surveillance projects that require maximum service continuity and stable power delivery.

Thanks to its compact, silent, fanless design, the TL-SG1210PP can be installed in both new networks and infrastructure upgrades or replacements. Its Plug & Play operation allows the installation to be up and running within minutes, helping reduce deployment times and installation costs.

Reference: TL-SG1210PP

-
+

Extended information about Unmanaged TP-Link switch with 8 Gigabit PoE+ ports, 2 uplink ports, and 1 SFP port.

Practical applications of the Unmanaged TP-Link switch with 8 Gigabit PoE+ ports, 2 uplink ports, and 1 SFP port.

Example 1. IP 16 cameras installation in outdoor parking areas:

The Extend Mode of the TP-Link TL-SG1210PP allows IP cameras located up to 250 meters from the switch to be powered and connected using a single Ethernet cable. This feature is especially useful in parking areas, as it allows the use of a pair of switches to extend connectivity for up to 16 IP cameras. Thanks to the uplink ports, one switch can be connected to another without losing functionality on any of the connected cameras.

Example 2. Secure PoE networks for offices and commercial premises:

In installations with multiple IP devices, the isolation mode separates traffic between connected ports, helping to prevent unwanted communication between devices. This improves network stability and adds an extra layer of security in offices, shops, hotels and access control systems.

Package contents of the Unmanaged TP-Link switch with 8 Gigabit PoE+ ports, 2 uplink ports, and 1 SFP port.

  • TP-Link TL-SG1210PP switch
  • Power adapter
  • Quick installation guide
  • Manufacturer documentation

Technical specifications Unmanaged TP-Link switch with 8 Gigabit PoE+ ports, 2 uplink ports, and 1 SFP port.

Feature Details
Model TP-Link TL-SG1210PP
Type Unmanaged switch
PoE ports 8 PoE+ ports
SFP port 1 Gigabit SFP port
PoE standards IEEE 802.3af / IEEE 802.3at
PoE power per port Up to 30 W
Total PoE power budget 123 W
Switching capacity 20 Gbps
MAC address table 4K
Forwarding rate 14.88 Mpps
Extended mode Up to 250 metres
Isolation mode Yes
PoE Auto Recovery Yes
PoE priority Yes
Configuration Plug and Play
Cooling Fanless design
Power supply External 53.5 V DC power adapter
Dimensions 209 × 126 × 26 mm
Operating temperature 0°C to 40°C
Certifications CE, FCC, RoHS
