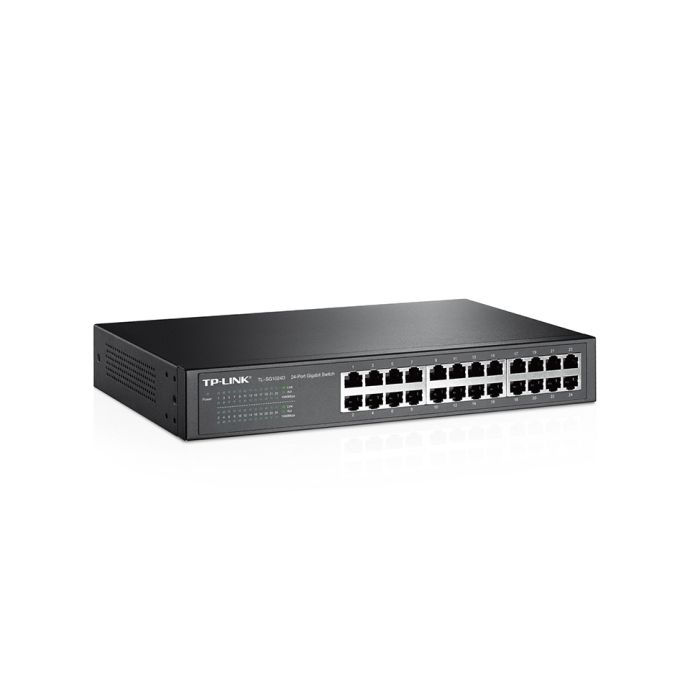

Switch de 24 Puertos 1Gb de TPLINK

SKU
TL-SG1024DE
Brands: Tplink
€137.64 Tax included
Availability: In stock
Consult

24-Port 10/100/1000 Easy Smart Gigabyte Switch


The TL-SG1024D Gigabit Ethernet Switch offers you a high performance, low cost, easy to use, seamless and standard solution to upgrade your old network to 1000Mbps network. Useful in small and medium networks.

All ports support auto MDI / MDIX so there is no need to worry about cable type, just plug and play.

Moreover, with the innovative energy efficiency technology, the TL-SG1024 can save up to 25% of the energy consumption as it detects the unused ports to reduce their energy consumption; and as 80% of the packaging material can be recycled it is an ecological solution for your business network.

Thanks to the Easy Smart configuration utility you will be able to centrally manage all the Easy Smart switches on your network.

-
+

24-Port 10/100/1000 Easy Smart Gigabyte Switch Technical Specifications

The TL-SG1024DE Switch has all of its 24 Gigabit RJ-45 ports that provide great file transfer and are also compatible with 10Mbps and 100Mbps Ethernet devices.

What technical characteristics does the TL-SG1024DE Switch have?

  • Innovative energy efficiency technology that saves up to 20% energy
  • Supports IEEE 802.3x flow control in Full Duplex mode and Back-Pressure in Half Duplex mode
  • Non-blocking switching architecture for forwarding and filtering packets at maximum wire speed for optimal performance.
  • 48 Gbps switching capacity
  • Incorporates 10K jumbo frame that improves performance of large file transfers
  • Automatic MDI / MDIX detection makes the use of crossover cables unnecessary.
  • Supports automatic MAC address learning and expiration (Auto-Learning and Auto-aging)
  • Store-and-Forward switching function
  • Intelligent 10 Mbps, 100 Mbps and 1000 Mbps hardware integration thanks to automatic port negotiation.
  • Designed to be rack-mountable or used as a desktop computer
  • Simple installation via Plug and Play

What technical specifications does the TL-SG1024DE Switch have?

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 13.1W (220V/50Hz)
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Jumbo Frame 10KB
Green Technology Yes
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
More Information
EAN 6935364021245
Hight 0.400
Length 0.250
Width 0.080
System NOT POE
SERIE 24 Ports
Color Black
Network Equipment Switch
Ports 24
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Product Brand Tplink
Write Your Own Review
You're reviewing:Switch de 24 Puertos 1Gb de TPLINK
Your Rating
File Label Size Download
pdf Manual de usuario del Switch TL-SG1024D 2.7 MB Download
