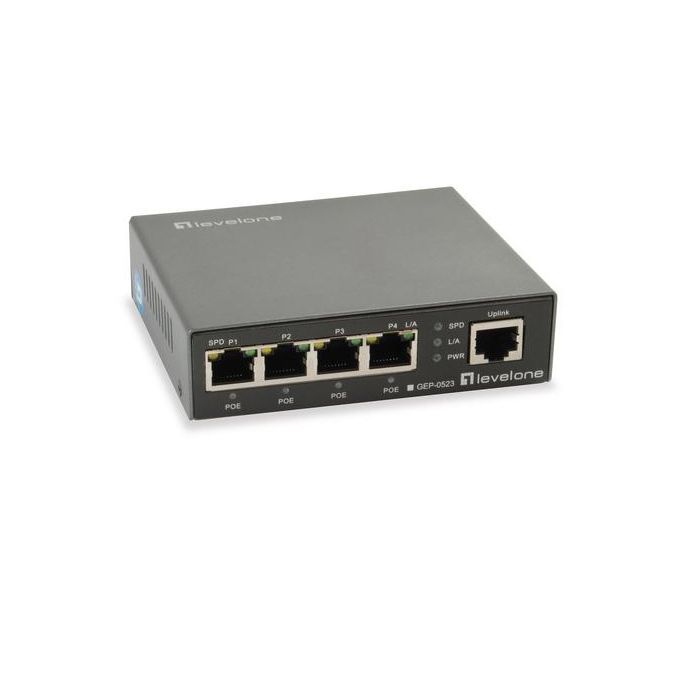

Switch 4 Ports 1Gb POE+ and 1 Uplink 10Gb 60W by Levelone

SKU

GEP0523

Brands: Levelone

Availability: On request

Delivery: 1 to 7 days

€83.10 Tax included

Switch 4 POE+ Ports and 1 Uplink 60W by Levelone

Basic RJ45 Gibabit Ethernet (10/100/1000) switching port. It has 5 ethernet ports, 4 of them powered through POE, achieving a power of up to 60W. In addition, it has an uplink port.

Through the POE port we can power a device through the ethernet data cable, a solution for when we do not have nearby power points.

Operates at gigabit speeds, compliant with IEEE 802.3at/af. Supports N-Way auto-negotiation protocol, which automatically detects network speed and duplex mode.

Details

Technical Specifications of the Switch 4 POE+ Ports and 1 Uplink 60W by Levelone

• Functions

o Switch capacity 10 Gb/s
o Packet forwarding speed 7.44 Mpps
o Jumbo frame size 9,000 Bytes
or MAC8K address
or Buffer1.024 kbit

• Food

o Maximum power consumption 65 W
o Total performance PoE60 W

• Environmental conditions

o Operating temperature -20 - 70 °C
o Operating Humidity Rate5 - 90%
o Permissible non-use temperature -20 - 70 °C
o Non-use allowable moisture rate5 - 90%
o Maximum volume0 dB

• Measurements and weight

or Weight0.75 kg

• Other features

o Switch5 ports
o Gigabit Ethernet Port 5 x RJ-45
o Switch type Standalone
o Administrationunmanageable
or Layer2
o Network standard Power over Ethernet+ (PoE+), Flow-Control, Full-Duplex, Auto-Negotiation
or PoE4 ports
o Store-and-Forward Mode
o Number of fans0
or Colorgrey
o Housing material metal
