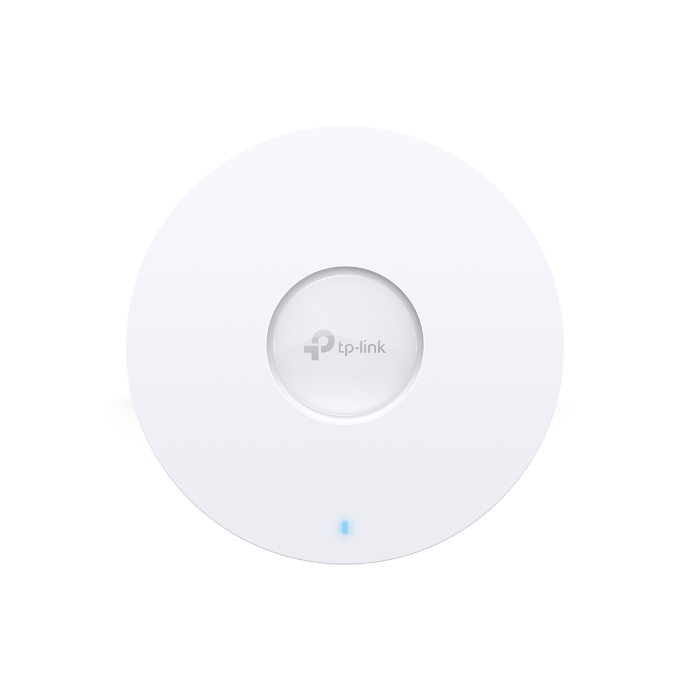

Omada Access Point WIFI6 Indoor Dual Band Managed in the Cloud EAP660 HD

SKU

TL-EAP660HD

Brands: Tplink

Availability: On request

Delivery: 1 to 7 days

€311.36 Tax included

Access Point EAP660HD AX3600 Omada with WiFi6

Ultra-fast 6-speed dual-band (2.4/5GHz) WiFi wireless access point for ceiling mounting. It integrates Omada SDN software that allows centralized management of the network 100% in the cloud, from a single simple and intuitive interface.

AX3600 high-performance access point with OFDMA and MU-MIMO technology, which increases network capacity up to 4 times compared to WiFi 5, for high-density environments, supporting more devices simultaneously. Ideal for hospitals, restaurants, shopping malls, meeting rooms, train/bus stations, airports, etc.

Seamless roaming that automatically switches clients to the access point with the optimal signal, with seamless streaming on the go. This allows video conferencing and IP calls without interruptions. Supports DC power, 802.3at POE+, and passive POE, for flexible installations.

This access point is placed on the ceiling and is very discreet thanks to its size, it is ultra light and thin, with a thickness of 33mm.

Details

Technical Specifications of the EAP660HD AX3600 Omada Access Point with WiFi6

HARDWARE FEATURES
Interface	1 2.5 Gbps Ethernet port (IEEE802.3at PoE compliant)
Buttons	Reset
Power Supply	• 802.3at PoE • 12 V DC
Power Consumption	• EU: 18.5 W • US: 21.5 W
Dimensions	243 × 243 × 64 mm (9.6 × 9.6 × 2.5 in)
Antenna Type	Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi
Munting	Mounting Ceiling/wall mounting (Kit included)

WIRELESS FEATURES
Wireless StandardsIEEE	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4GHz y 5GHz
Signal Rate	5GHz:to 2402 Mbps 2.4GHz:to 1148 Mbps
Wireless Features	• 1024-QAM • Longer 4 × OFDM symbol • OFDMA • Multiple SSIDs (up to 16 SSIDs, 8 for each band) • Enable / disable wireless radio • Automatic channel assignment • Transmit power control (adjust transmit power in dBm) • QoS (WMM) • MU-MIMO • Seamless roaming △ • Omada Mesh △ • band direction • Load balance • Airtime equity • Beam formation • Rate limit • Program reset • Wireless schedule • Wireless statistics based on SSID / AP / Client Wireless Security • Captive Portal Authentication
Wireless Security	• Captive Portal Authentication • Access control • Wireless MAC Address Filtering • Wireless isolation between clients • Assignment of SSID to VLAN • Clandestine AP detection • 802.1X support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Potency of transmission	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, EIRP) • FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud access	Yes (Via Omada Software controller or OC200)
Email Alerts	Yes
LED control ON / OFF	Yes
MAC Access Management Control	Yes
SNMP	v1, v2c, v3
Access to Local System Registry/Remote System Registry	Local/Remoto Syslog
SSH	Yes
Web-based management	HTTP/HTTPS
L3 management	Yes
Multi-site management	Yes
VLAN de Gestión	Yes
Contactless provisioning	Yes. Requires use of Omada's cloud-based driver.

OTHERS
Certifications	CE, FCC, RoHS
Package Contents	• EAP660HD • Power adapter • Ceiling/wall mounting kit • Installation guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux, MAC (navegador web)
Environmental factors	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
