Switch 8 Ports 1Gb 7 POE+ 65W by Mercusys

SKU
MERMS108GP
Brands: Mercusys
Availability: On request
1 to 7 days
€49.79 Tax included
-
+

Switch 8 Ports 1Gb 7 POE+ 65W by Mercusys

This Mercusys switch has 8 ports with a transfer speed of 1Gbps. Of the 8 ports, 7 of them are POE+, capable of sending both data and power over the same cable, ideal when we do not have power points near the connected devices.

POE ports have up to 30W of power per port and 65W total for all ports, with a maximum range of 250 meters with extended mode.

With this switch we can divide the traffic of specific ports providing greater security and stability.

It is very easy to use since it is configured in a plug and play way, connect and use. Its casing dissipates heat efficiently.

Technical Specifications of the Switch 8 Ports 1Gb 7 POE+ 65W from Mercusys

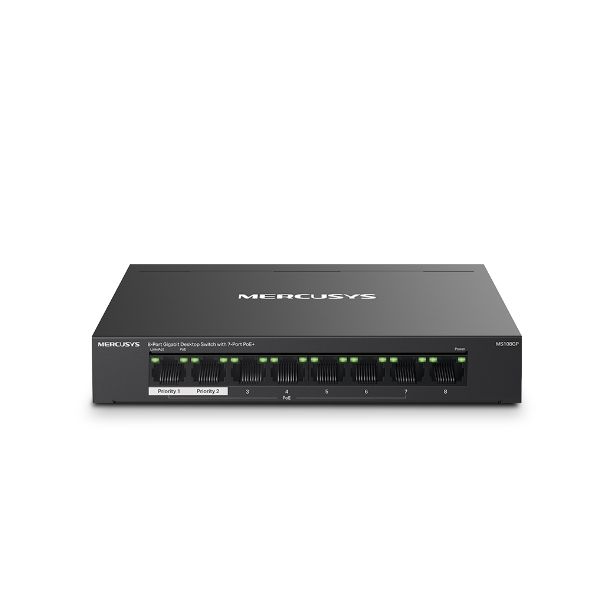

Product Picture

Model MS108GP
Standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface 8× 10/100/1000 Mbps RJ45 ports
Network Media (Cable) 10BASE-T:2-pair UTP/STP (≤100m) of Cat. 3 or above 100BASE-TX:2-pair UTP/STP (≤100m) of Cat. 5 or above 1000BASE-T:4-pair UTP/STP (≤100m) of Cat. 5e or above
PoE PoE Standard: compatible with 802.3af/at PDs PoE Port 1–7, up to 30 W per port
PoE Power Budget 65 W*
Auto-Negotiation YES
Auto MDI/MDIX YES
PoE Power on RJ45 Power+: pin 3 & pin 6
Power -: pin 1 & pin 2
Max Power Consumption 5.07W (22/50 Hz, no PD connected)
77.33W (220/50 Hz, with 65W PD connected)
Max Heat Dissipation 17.238 BTU/h (no PD connected)
262.922 BTU/h (with 65 W PD connected)
Forwarding Mode Store and Forward
Switch Capacity 16 Gbps
MAC Address Table 8k, Auto-learning, Auto-aging
Extend Mode YES
Isolation Mode YES
Flow Conrol YES
Fanless YES
LED Power, Link/Act, PoE Status
Dimensions 171*98*27mm (6.7*3.9*1.1 in)

CE, RoHS
Environment Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 95% RH, non-condensing
More Information
EAN 6957939001209
System POE+
SERIE 8 Ports
Color Black
Network Equipment Switch
Ports 8
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand Mercusys
