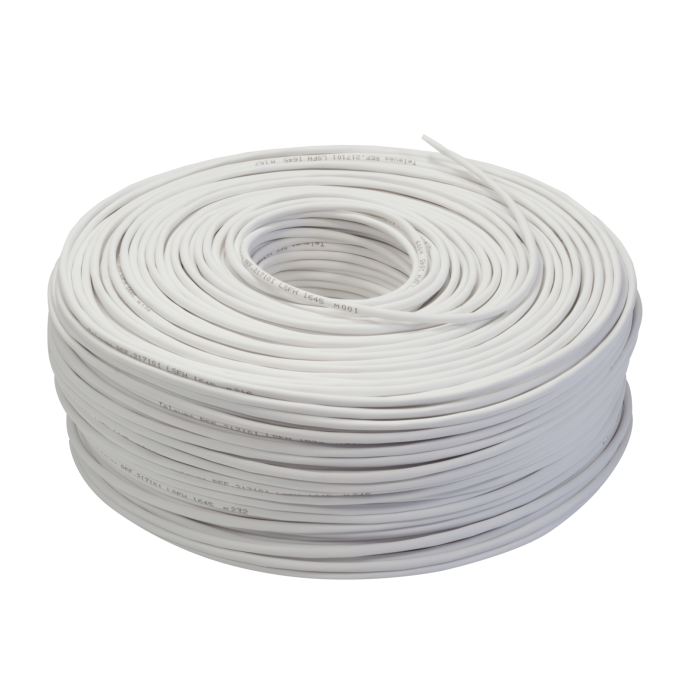

Telephone cable of 2 pairs in 250 m coil.

SKU

TEL217101C

Brands: Televes

Availability: In stock

Delivery: 24/48 Hours

€83.26 Tax included

2-pair telephone cable in 250m coil

Televes 217101 telephony cable consists of two twisted pairs with pure electrolytic copper conductor of gauge not less than 0.5 mm in diameter.

One or two pairs of cable will be used in the dispersion network and in the user's internal network. Cables of more than 25 pairs are used for the realization of the main basic telephony network.

This cable is distributed in coil of 250m, to buy it to the cut, enter the following link.

Details

The 217101 telephone cable is a 2-pair telephone cable.

What technical characteristics does the 217101 clable have?

Reference			217101
No. of pairs			2
Mechanical specifications
Inner conductor	Diameter	mm	0,5 ··· 0,6
	Insulation	material	PE
Outer sheath	material		LSFH
	Thickness	mm	0,7
	Diameter	mm	5
	color		White
Twisting length		mm	< 55
Electric specifications
Ohms resistance		Ω/Km	< 98
Insulation resistance		MΩ/Km	> 1000
Conductor/shielding dielectric strength		Vac	> 350
		Vdc	> 500
Mutual capacitance		nF/Km	< 58
Attenuation		dB/Km	1,7
			1,8
			2,3
			9
			24
