Televes FTTH Optical Transmitter

SKU

TEL237302

Brands: Televes

Availability: In stock

Delivery: 24/48 Hours

€446.72 Tax included

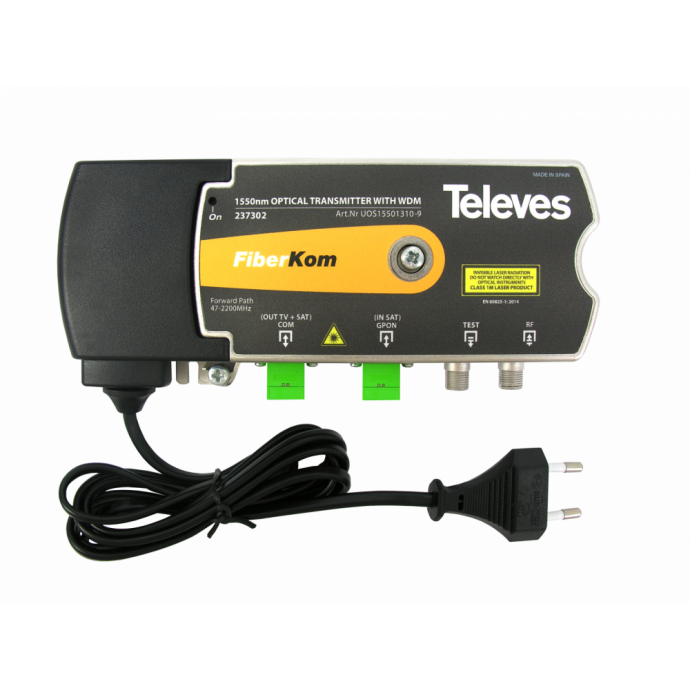

Televes 237302 FTTH Optical Transmitter

With this transmitter we will be able to mix a terrestrial RF signal and an optical signals from satellite (at 1310nm) to fiber.

The transmitter works as follows: it takes the DTT signal and converts it to an optical signal (at 1550nm), which will mix it with the satellite optical signal, multiplexing it to obtain a single fiber optic signal at the output with all the content of the 2 original signals.

It allows to carry the DTT and satellite signal through fiber over long distances, with little loss of signal quality.

Main features:

Compatible with legacy and dCSS multiswitches
High armored chassis, made of Zamak
wall screwable
SC/APC and Type F RF optical connectors

Details

Technical Specifications of Televes 237302 FTTH Optical Transmitter

RF parameters
Bandwidth	MHz	47 ... 2200
Flatness	dB	± 0,75 (47-1200MHz) ± 2,5 (47-1200MHz)
Input level	dBµV	81 (47-1200MHz) 42ch CENELEC 95 (950-2200MHz) DIB-VDE 0855/12
CNR/CSO/CTB	dBµV	>50/>59/>63
Optical output
Laser	Tipo	MQW-DBF
Output power	dBm	+9
Wavelength	nm	1550
General
Supply voltage	V~	99...253
Maximum power	W	2.5
Max. current consumption	mA	75 (99V) / 45 (253V)
Dimensions (xyz)	mm	185 x 80 x 35
Weight	g	400
IP protection index	IP	30
