Tp-Link AX1500 Dual Band WiFi6 Mesh Coverage Extender

SKU

TL-RE505X

Brands: Tplink

Availability: On request

Delivery: 1 to 7 days

€71.03 Tax included

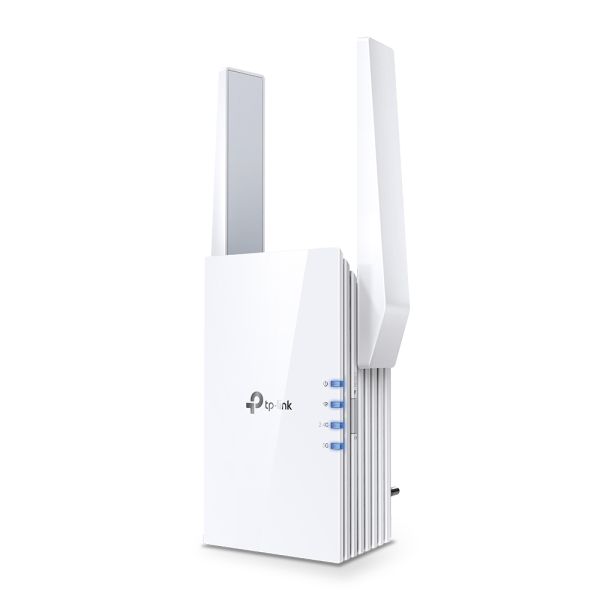

Tp-Link AX1500 Dual Band WiFi 6 Mesh Repeater

The RE505X is a next-generation coverage extender that connects to your router wirelessly with WiFi 6. It works on dual band, providing speeds of 300Mbps at 2.4GHz and 1200Mbps at 5GHz.

This repeater uses the latest WiFi technology, eliminating dead zones, without cuts, endless uploads and delays. You will be able to browse much faster with much more secure connections.

If our network is wired, we can use it as a dual-band access point by simply connecting it through the Ethernet cable, since it has a gigabit Ethernet port.

If we connect it to a router compatible with OneMesh technology, we can create a single network with the same name and password, so that both the router and the extender can work together to make your connected devices more stable and reliable.

Its installation is done through the Tether APP, very easy to configure. You will be able to manage status, control functions and change options.

Details

Technical Specifications of the Tp-Link AX1500 Dual Band WiFi 6 Mesh Repeater

WIRELESS
Working Modes	Range Extender/Access Point

HARDWARE FEATURES
Ports	1 Gigabit Ethernet Port
Button	WPS Button, Reset Button
Input Power	100-240V~50/60Hz
Power Consumption	10W
Dimensions ( W x D x H )	2.9×1.8×4.9 in. (74.0×46×124.8 mm)
Antenna	2 External Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz and 5GHz
Signal Rate	300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
Working Modes	Range Extender/Access Point
Reception Sensitivity	5GHz: 11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm 2.4GHz: 11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm
Transmit Power	CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm
Wireless Functions	Enable/Disable Wireless Radio, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA-PSK2 encryptions
Transmission Power	CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm

OTHERS
Certification	FCC, RoHS
Package Contents	Wi-Fi Range Extender RE505X Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Certifications	FCC, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
