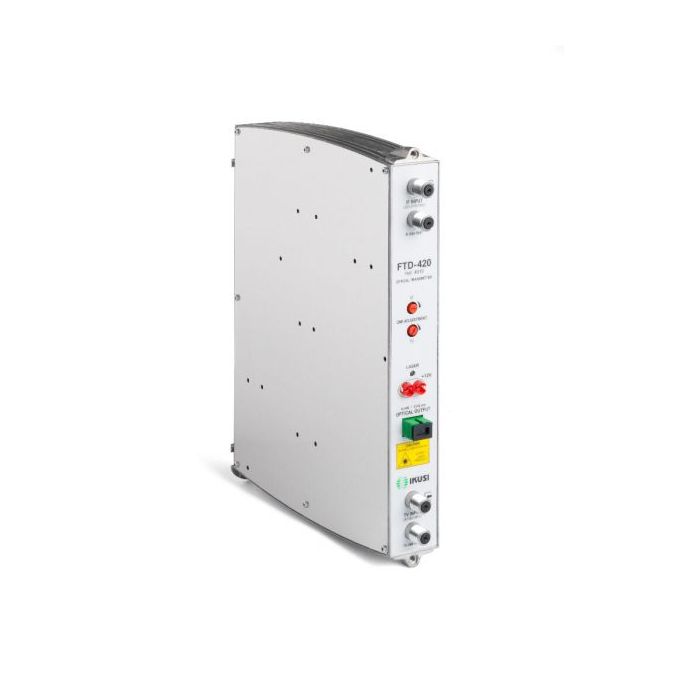

Triax 1310nm SC/APC 6dBm Optical Transmitter

Triax Optical Transmitter with 2 TV/FI Inputs and 1 1310nm SC/APC 6dBm Output

The optical transmitter is a device that allows us to distribute the content of the terrestrial band and a satellite through a single fiber. The optical transmitter converts the electrical signal into optical signal. Thanks to the optical signal we can send a greater amount of information through a fiber optic cable. By transferring the information to a fiber optic cable, which has fewer losses, we will be able to handle greater distances in the facilities with less danger of losing signal quality.

The transmitter has 2 inputs: one RF (45-862Mhz) and another IF (950-2150MHz) with F connectors, which are mixed to convert it to an optical signal in the 1310nm window with an output power of 6dBm and a SC/APC type optical connector.

This solution is ideal for the distribution of analog and digital terrestrial TV and satellite IF signals in large collective installations: residential, hotels, shopping centers, etc.

Compatible with PAL, SECAM, NTSC, FM, DVB-S, DVB-T, DVB-C and others. 12Vdc power connection from a CFP module. A DC bridge is supplied with each transmitter for the installation of the +12Vdc power cascade from the power supply module. When the laser is in this operation, the front panel LED indicator turns green.

It can be mounted on a ClassA header base-support or rack-support.

Reference: TRI4915
