Universal mechanism 990AD MAX 10 / 24Vac / dc

SKU
FER6753
Brands: Fermax
Availability: In stock
24/48 Hours
€21.95 Tax included
Fermax

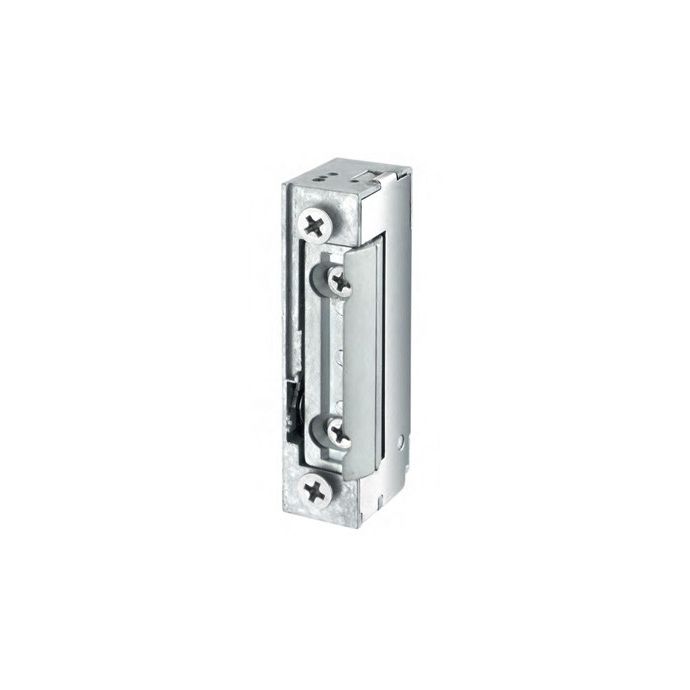

Fermax universal mechanism 6753

The electrical mechanism 6753 is a device which is installed in the door frame to control its opening from a remote location by an electrical device.

In an installation of electronic doorman it is possible to activate the mechanism of the entrance to the building and to allow the access of the visit from the telephone or monitor of the house when pressing the button 'door-open'.

An opener is composed of an electric mechanism and an armature or cover depending on whether it is recessed or surface.

The universal mechanism 6753 allows the opening to both right and left.

What technical features does the 6753 mechanism have?

  • Reversible (DIN Right or DIN Left). It allows the opening to both right and left.
  • The DIN standard establishes the opening direction of the door and designates the type of door opener installed.
  • Looking at the door from the side where the hinges are visible:
  • If the hinges are to the left of the observer, it is a left DIN opener.
  • If the hinges are to the right of the observer, it is a Right DIN opener.
  • There are several types of door opener mechanisms, depending on the type of operation that is needed.
  • Type N 10-24Vac / dc:
  •  A (Automatic operation and activation at 10-24Vac / dc): the door opener is automatically unlocked when a voltage impulse of 10-24Vac / dc is received. The door opener is relocked once it is no longer tensioned and mechanically opens and closes the door again. For a correct installation the automatic teton must be pressed about 3mm by the sliding door once it is closed.
  • D unlock. The door opener includes a manual unlocking lever, which inhibits its operation, allowing free access.
  • The door opener includes an adjustable latch, allowing an exact adjustment between the latch and the lock slip, with a margin of 4mm. It allows the door leaf not to press the opener latch.

What technical specifications has the 6753 mechanism?

  • Consumption: A_MULTIVOLTAJE 10-24V: 12Vac: 250mA, 12Vdc: 280mA, 24Vac: 500mA, 24Vdc: 560mA
  • Dimensions: 66 (V) x 16 (H) x 25.5 (P) mm.
  • MAX setting: 2mm
  • Retention force: 330Kg-f / 3230N
  • Temperature: -15ºC to + 40ºC
  • Cycles tested: 400,000
More Information
EAN8424299067537
SystemAccessories
SERIEAbrepuertas
ColorSilver
CurrentAC / DC
FunctioningWith Lock Lever
Multivoltage 10 to 24 Vc/VaYes
Product BrandFermax
Write Your Own Review
You're reviewing:Universal mechanism 990AD MAX 10 / 24Vac / dc
Your Rating
File Label Size Download
pdf Ficha Técnica Mecanismo universal 6753 de Fermax 40.7 KB Download
