White Monitor Maxi 7'' with Android 6813W

SKU

COM6813W

Brands: Comelit

Availability: On request

Delivery: 1 to 7 days

€411.63 Tax included

White Monitor Maxi 7'' with Android 6813W

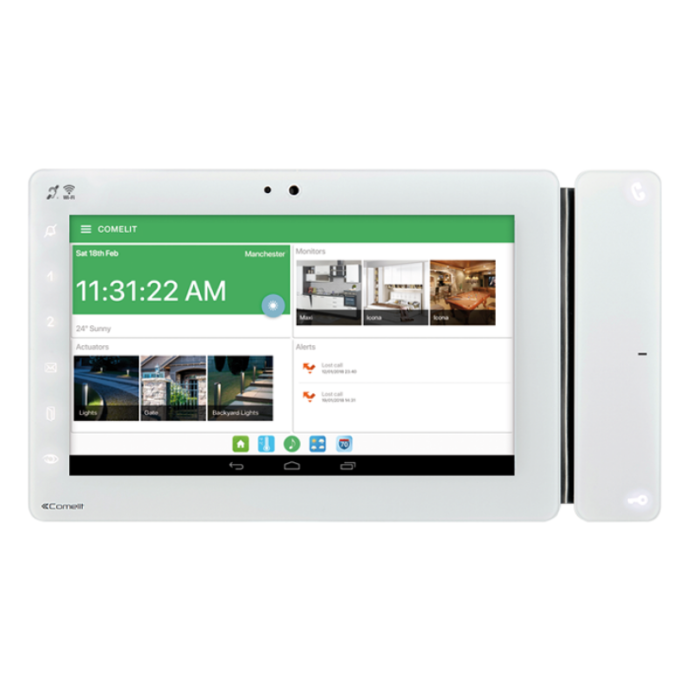

This is the new Comelit video door entry monitor, with a 7” touch screen and Android system. Its smart screen with HD resolution and Vip system make it a great solution for your video door entry system, which is no longer a video door entry system to become a home controller to manage your home automation, anti-intrusion, community services, access web pages or use pre-installed apps.

It has many options such as customizable menu, call forwarding, IP camera display, retractable micro SD card, intercom function, MEMOVIDEO function. You will be able to respond remotely from your mobile thanks to the Comelit APP.

With a 12mm thick body, it can be installed in a flush-mounted box or on a surface.

This monitor has 2 LAN ports and a WiFi connection. The main feature is that it is compatible with other brands so you can manage systems manufactured by third parties (such as Fibaro).

Details

Technical Specifications of the Maxi 7'' White Monitor with Android 6813W

7" MAXI MONITOR WITH ANDROID, WHITE. VIP
GENERAL DATA
Height (mm)	124
Width (mm)	223
Depth (mm)	27
Product color	White RAL9003, base grey RAL7001
Type of finishing materials	ABS, Glass
Product weight (g)	650
Flush-mounted	Yes, with a dedicated accessory
Wall-mounted	Yes, with a dedicated accessory
Desk base-mounted	Yes, with a dedicated accessory

COMPATIBLE SYSTEMS
ViP	Yes

DISPLAY
Display size (")	7
Aspect Ratio	16:9
Touch screen	Yes, capacitive
Resolution (pixels)	1024x600
OSD menu	Yes

CAMERA FEATURES
Sensor type	1/5" CMOS
Lens optical dimensions (mm)	2.7
Angle of view (H x V - °)	83 x 66

AUDIO FEATURES
Type	Hands-free
Induction loop function	Yes
Microphone	4mm (Ø), Omnidirectional
Loudspeaker	40 (ø) x 28.4 (H)mm, 4 ohm, 2W

ELECTRICAL CHARACTERISTICS
Type of power supply	PoE
PoE power supply	Standard IEEE 802.3af, Comelit PoE (56VDC)
Absorption in stand-by (W)	4.2
Maximum absorption (W)	7.8

HARDWARE FEATURES
Type of buttons	Capacitive
Service buttons	Lock-release, Answer, Silent (Privacy), Menu, Messages, Door open
No. of programmable buttons for additional functions	2
Clamps	Al 0V CFP Pan In4 Out1 S+ S-
Removable terminals	Yes
Number of inputs (n°)	1
Number of outputs (n°)	1
Communication ports	RJ45 (Ethernet), Micro-USB, 2 x RS485

SETTINGS
Loudspeaker volume	Yes
Ringtone volume	Yes
Screen brightness control	Yes

GENERAL FEATURES
Door opening on call (Doctor)	Yes
Door opener	Yes
IP assignment	AUTO IP, DHCP, STATIC
Call to group addresses	Yes
CPS call	Yes
Intercom calls	Yes
Actuator control	Yes
Compatibility with Comelit app (with external gateway)	Yes
Call forwarding	Yes
Doctor	Yes
