Wideband LNB with Vertical/Horizontal Output (290-2340MHz) by Johansson

SKU

JOH9720

Brands: Johansson

Availability: On request

Delivery: 1 to 7 days

€30.53 Tax included

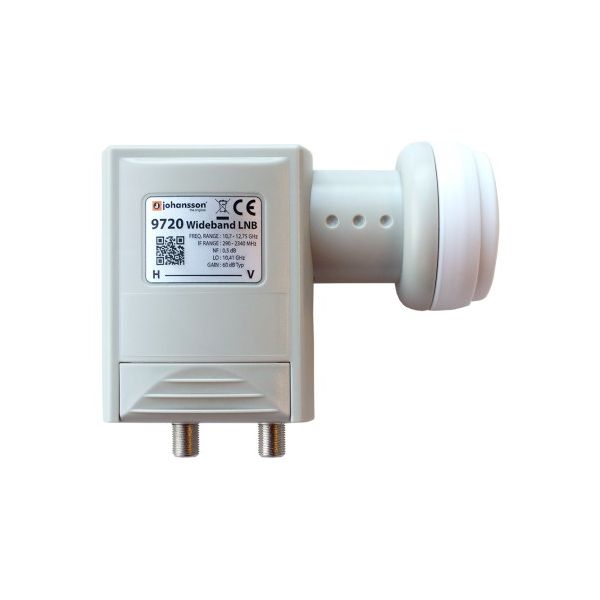

Johansson Wideband LNB with Vertical and Horizontal Output

This LNB can receive a signal from a standard KU satellite by generating two IF signals: one horizontal and one vertical. In each output we will have both the high and low band. So in the two signals we will have the 4 polarities.

Therefore, this LNB will be capable of receiving a ku satellite orbital slot obtaining 1 horizontal output and 1 vertical output in the 290-2340MHz range. If we connect it to a specific converter (such as the JOH9646) we can get 4 outputs each with a polarity (VH, VL, HL, HH).

The wideband LNB has a low noise figure (0.5dB). It is designed for receivers with recording functions that have 2 FI sat inputs, allowing you to record and watch several programs at the same time. This type of LNB improves the installation since we need fewer cables, connections, lower cost and less energy consumption.

Details

Technical Specifications of the Johansson Wideband LNB with Vertical and Horizontal Output

9720
Input	-	1Ku
Input frequency	MHz	10700 – 12750
Outputs	-	2 (V & H)
Output frequency	MHz	290 – 2340
LO frequency	MHz	10410
Conversion gain	dB	Typical 55
Noise figure	dB	Typical 0,5
Cross polarization isolation	dB	25
Output power	dBm	-30*
DC supply voltage	VDC	9 – 20
Power consumption	W	< 1
Operating temperature	°C	-40 to +60
LNB mount fitting	mm	40
Dimensions	mm	135 x 120 x 60
