WiFi Access Point AC1200 Gigabit MU-MIMO Omada Tp-link

SKU
TL-EAP230WALL
Brands: Tplink
Availability: In stock
24/48 Hours
€80.19 Tax included
Tplink

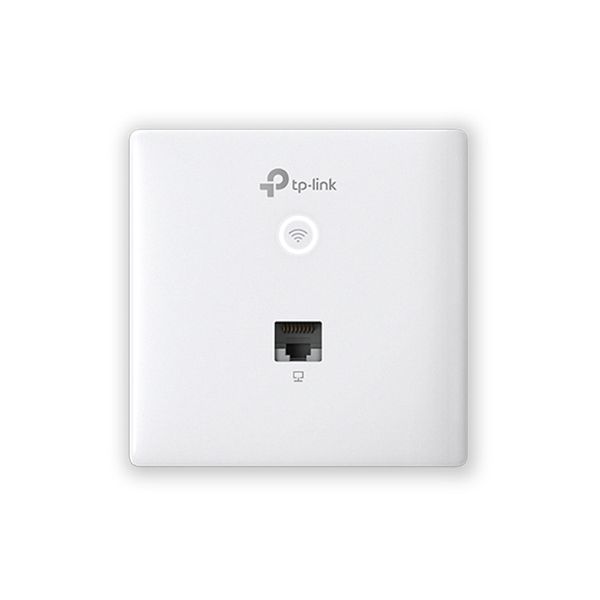

Gigabit Wall-Mounted WiFi Access Point MU-MIMO Omada AC1200 Tp-Link EAP230-WALL

AC1200 (2.4/5GHz) dual-band Wi-Fi access point with 2 Gigabit Ethernet ports for bridging (1 uplink + 1 downlink).

Compatible with Omada application for centralized management in the cloud and intelligent monitoring. MU-MIMO technology for simultaneous high-speed connections from multiple users to the Internet. The device is powered through the Ethernet cable itself using PoE 802.3af/at from a PoE switch.

Sleek and discreet design, the same size as a light switch or power outlet, and just 11mm protruding from the wall. It fits perfectly with any decoration. Fits two types of junction boxes: 86mm square box and EU standard circular box.



Dualband MU-MIMO AC1200 Gigabit Omada PoE WiFi Wall Access Point

What technical specifications does the Tp-Link EAP230-WALL Access Point have?

HARDWARE FEATURES
Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port
Physical Security Lock No
Button LED/Wi-Fi Button, RESET
Power Supply 802.3af/802.3at PoE
Power Consumption 7 W
Dimensions 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 3.6 dBi
Mounting Wall Plate Mounting
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b/ac
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• MU-MIMO
• Band Steering
• Beamforming
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power CE:
• ≤20 dBm (2.4 GHz, EIRP)
• ≤23 dBm (5 GHz, EIRP)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, RoHS
Package Contents • Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
• Installation Guide
• Mounting Screw
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
More Information
EAN6935364089481
SystemWIFI5
SERIEWall
ColorWhite
Network EquipmentAccess Point
Ports2
Data SpeedGigabit (10/100/1000Mbps)
PoEYes
Product BrandTplink
