1 Output DTT-SAT Tap F 25dB Tecatel

SKU
TECDERCLA1S25
Brands: Tecatel
Availability: In stock
24/48 Hours
€3.13 Tax included
Tecatel

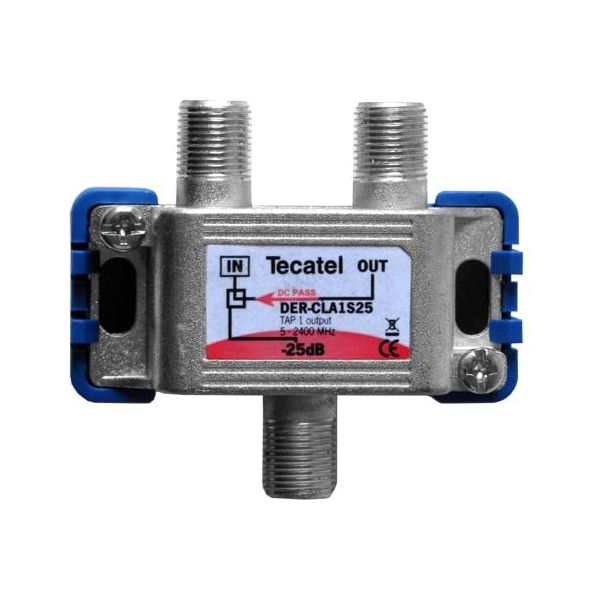

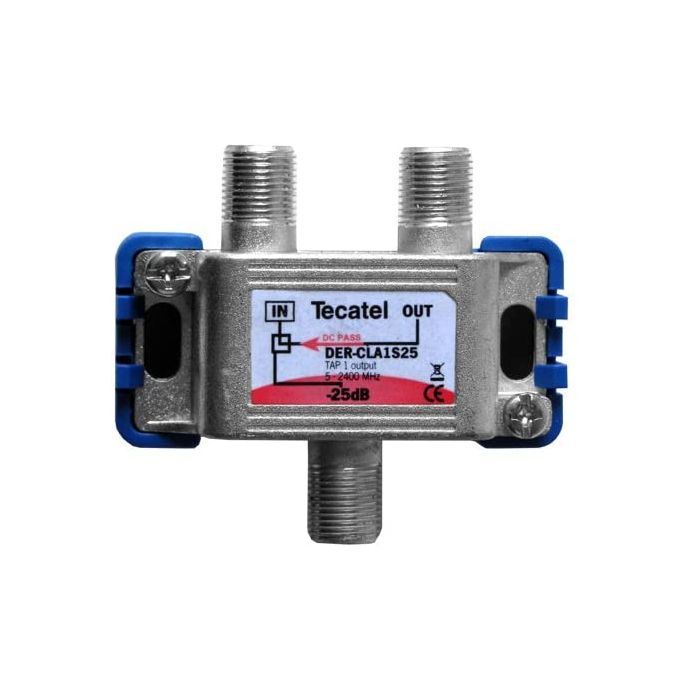

1 Output DTT-SAT F Tap -25dB Tecatel DER-CLA1S25

DTT-SAT (5-2400 MHz) F-type tap for distribution of 1 output per plant with 25dB of derivation and 1dB of step. Compact design with high quality Zamak shielding and corrosion resistant nickel finish.

Passive distribution equipment for community TV installations according to ICT regulations. It allows to distribute the signal to 1 house per floor and has a pass-through output with a minimum attenuation to connect to the derivative of the lower floor.

DTT-SAT 1-output type F tap with 25dB attenuation, for ICT collective installations

What technical specifications does the Tecatel DER-CLA1S25 Tap have?

  • Reference: DER-CLA1S25
  • Shunt losses:
    • 5-1000 MHz: 25 ± 1 dB
    • 1000-2400 MHz: 25 ± 1.5 dB
  • Insertion losses:
    • 5-47 MHz: 0.9 dB
    • 47-1000 MHz: 0.9 dB
    • 1000-1750 MHz: 1.0 dB
    • 1750-2300 MHz: 1.0 dB
    • 2300-2400 MHz: 1.2 dB
  • Pass-by-pass isolation:> 20 dB
  • Dimensions: 57x49x26 mm
  • Weight: 40 gr.
  • Frequency range: 5-2400 MHz
  • Impedance: 75Ω
  • Connectors: F
More Information
EAN8430549029002
SystemDTT & SAT
SERIEF-connector
TV-SAT Distribution EquipmentDiverter
EntornoInterior
TV-SAT Distribution ConnectionF
Outputs1
Insertion Loss (dB)25
Product BrandTecatel
