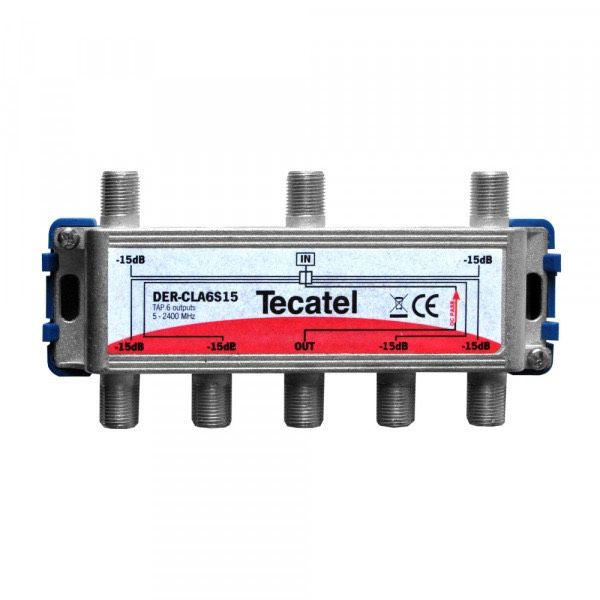

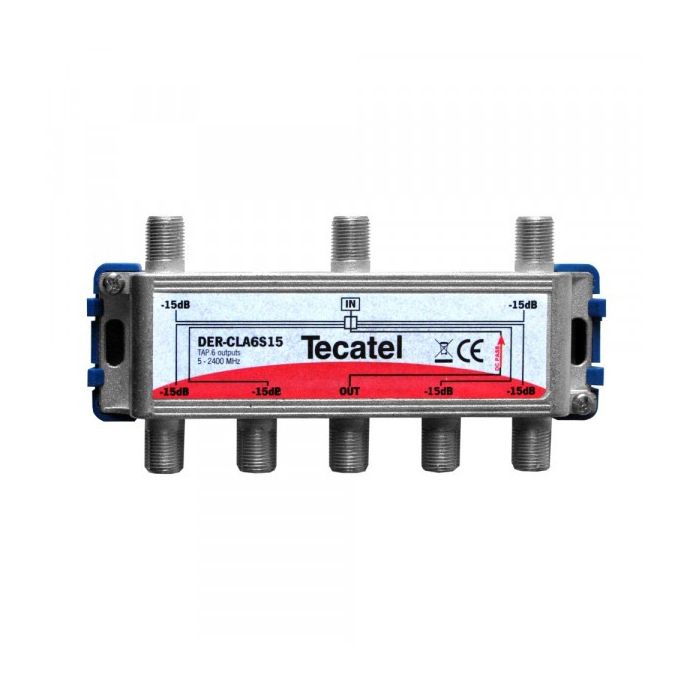

6 Outputs Tap DTT-SAT F -15dB Tecatel DER-CLA6S15

Tap for TV-SAT (5-2400 MHz) signals with 6 outputs per floor and 15dB of derivation attenuation and 4dB of pass-through. Made with high quality Zamak shielding, anticorrosive nickel finish and has F connections.

The taps are passive distribution equipment for collective TV installations that are governed by the ICT regulation, they are installed in the building's backbone network and their function is to distribute the signal to each house per floor, they have a pass-through output to connect to the derivative of the lower floor.

DTT-SAT tap with 6 F-type outputs with 15dB attenuation, for ICT collective installations

What technical specifications does the Tecatel DER-CLA6S15 Tap have?

  • Reference: DER-CLA6S15
  • Tap losses:
    • 5-1000 MHz: 15 ± 1 dB
    • 1000-2400 MHz: 15 ± 1.5 dB
  • Insertion losses:
    • 5-47 MHz: 4.3 dB
    • 47-1000 MHz: 4.4 dB
    • 1000-1750 MHz: 4.5 dB
    • 1750-2300 MHz: 4.8 dB
    • 2300-2400 MHz: 5 dB
  • Pass-by-pass isolation:> 18 dB
  • Dimensions: 124x60x26 mm
  • Weight: 114 gr.
  • Frequency range: 5-2400 MHz
  • Impedance: 75Ω
  • Connectors: F
More Information
EAN 8430549029095
System DTT & SAT
SERIE F-connector
Color Silver
TV-SAT Distribution Equipment Diverter
Entorno Interior
TV-SAT Distribution Connection F
Outputs 6
Insertion Loss (dB) 15
Product Brand Tecatel
