2-Way EasyF DTT-SAT 20dB Tap Televes
€9.12
Tax included

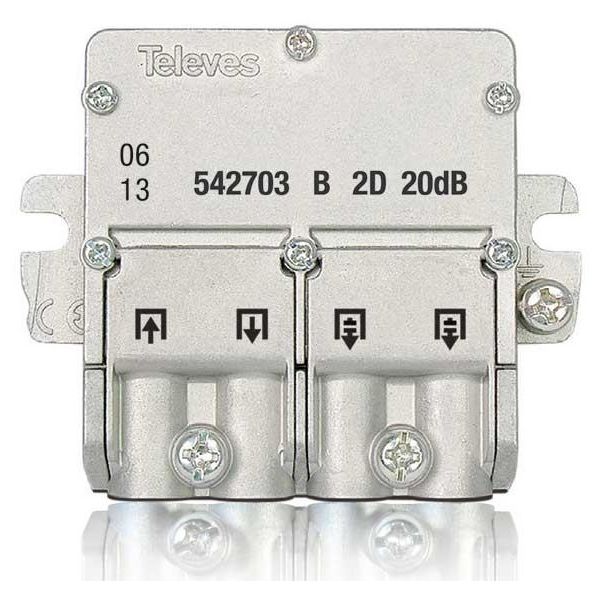

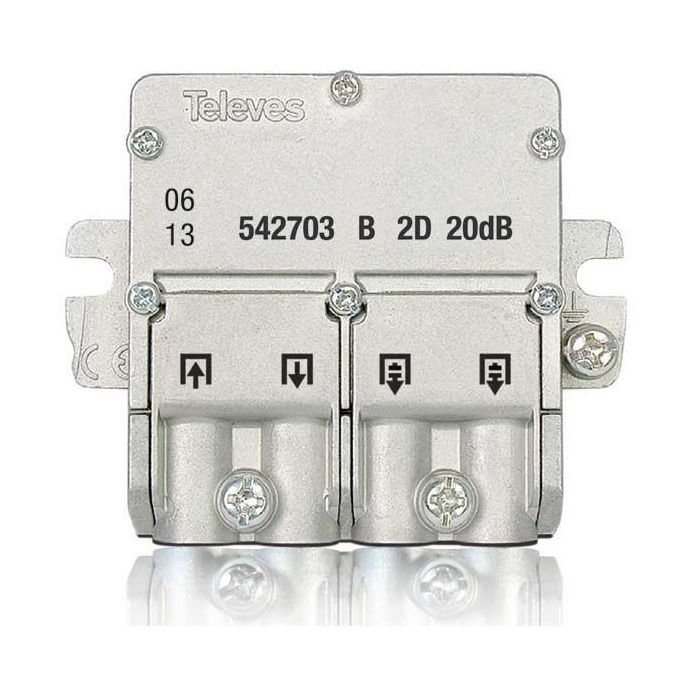

2-way EasyF DTT-SAT Mini-tap Televes 542703
Very compact tap with EasyF (Flange) type connections with 2 outputs and 20dB attenuation, to distribute DTT and Satellite signals (5-2400MHz).
The tap are equipment with 1 pass output for mounting in cascade, this through output has very low attenuation. They are passive distribution equipment, intended primarily for multi-dwelling installations, which are governed by ICT regulations.
Its ultra-reduced size (57x46x11mm) and its EasyF system, makes the installation of this equipment easy and comfortable. Due to its high losses, this shunt is designed to be installed between floors 4 and 6 of the building.
For indoor installation, being able to be installed outdoors always inside a chest.
Televes
24/48 Hours
Televes mini-tap with 2 flange or EasyF outputs with 20dB attenuation for DTT and SAT (5-2400MHz).
What are the main characteristics of the Televes 542703 tap?
- EasyF connection system: easy to install, savings on mounting
- Made of Zamak, high shielding
- Outstanding reliability: automated manufacturing using new generation micro-components
- Improves through losses
- Outstanding electrical behaviour: impulsive noise reduction
- Grounding screw provided
- Bidirectional DC pass between input and pass output
What technical specifications does the Televes 542703 tap have?
| Frequency range | MHz | 5-2400 | |
| 5-862 | 950-2400 | ||
| Number of outputs | 2 | ||
| Floors | 4 & 5 & 6 | ||
| Through loss | dB | 0,5–2,2 | 0,5-2,2 |
| Tap loss | 21 | ||
| Rejection between taps | >30 | >22 | |
| DC Pass (max.) | mA | 300 (in.↔out.) | |
Televes
24/48 Hours
| EAN | 8424450165744 |
|---|---|
| System | DTT & SAT |
| SERIE | Brida Connector |
| Color | Silver |
| TV-SAT Distribution Equipment | Diverter |
| Entorno | Interior |
| TV-SAT Distribution Connection | Flange |
| Outputs | 2 |
| Input signal | DAB, FI, FM, UHF, VHF |
| Insertion Loss (dB) | 20 |
| Current bypass | Yes |
| Product Brand | Televes |
Write Your Own Review
| Icon | Label | Size | Download |
|---|---|---|---|
|
Ficha técnica del Derivador TDT-SAT 2 salidas EasyF Televes 542703 | 659.7 KB | Download |
