30dB 2xUHF Mast Amplifier with 5G LTE

SKU
TECAMPLTE305L
Brands: Tecatel
Availability: Out of stock
Consult

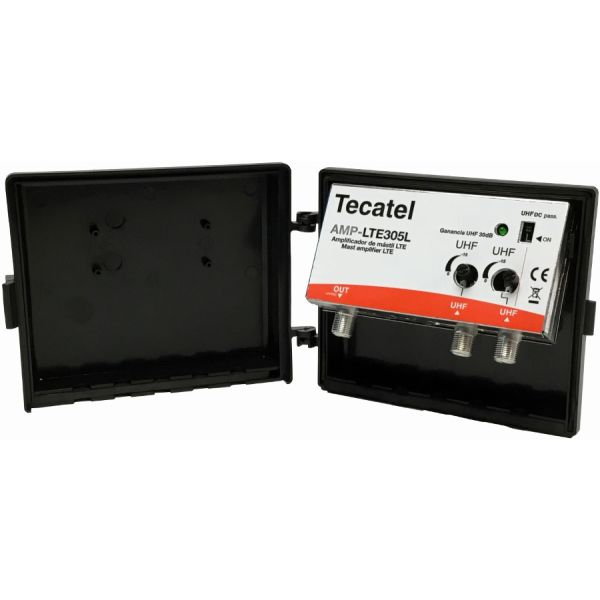

Mast amplifier 2UHF 30dB LTE 5G Tecatel AMP-LTE305L

MAX305L mast amplifier adapted to the 2nd Digital Dividend, with 2 DTT inputs of 30dB gain (adjustable ± 15dB) and output level 102 dBμV. Outdoor amplifier for channels 21 to 48 (470-690 Mhz) with integrated 5G LTE filter.

This equipment supports DC current pass for active DTT-UHF antennas. It is powered at 24V and has a consumption of 52mA. The amplifier is protected with a 145 x 110 x 45 mm outdoor hood in black.

For this amplifier, we recommend the Tecatel FA-MAX24120 24V Power Supply.

Reference: TECAMPLTE305L

Would you like us to notify you when stock arrives?

Would you like us to notify you when stock arrives?

Leave your email and we will notify you when it is available again.

We will use your email for this alert and, only if you choose, for offers. Privacy policy

MAX305L Tecatel 30dB mast amplifier, with 2 UHF inputs and integrated 5G LTE filter.

What technical specifications does the Tecatel AMP-LTE305L mast amplifier have?

Reference AMP-LTE305L
Inputs UHF1 UHF2
Frequency range 470-694 Mhz
Gain 30 dB
Gain adjustment 15 dB
Ouput level 102 dBμV
Noise figure < 2 dB
Connectors F female
Power supply 24 V
Consumption 52 mA
DC current pass Yes
index of protection (IP) IP23
Dimensions 145 x 110 x 45 mm
Weight 0.3 kg
More Information
EAN 8430549067813
Hight 0.150
Length 0.050
Width 0.110
DTT System DTT Amplifier
SERIES DTT F-connector
Color Black
Type Mast amplifier
Entorno Exterior
# Inputs 2
Outputs 1
Gain 30
Max. output level Ganancia (dB/uV) 102
LTE compatible No
Current bypass Terrestrial
Product Brand Tecatel
