48 Fibers Cable Singlemode Indoor/Outdoor by Meter

SKU

TEL231714

Brands: Televes

Availability: In stock

Delivery: 24/48 Hours

€3.62 Tax included

48 Fibers Singlemode Indoor/Outdoor LSFH Televes 231714 by Meter

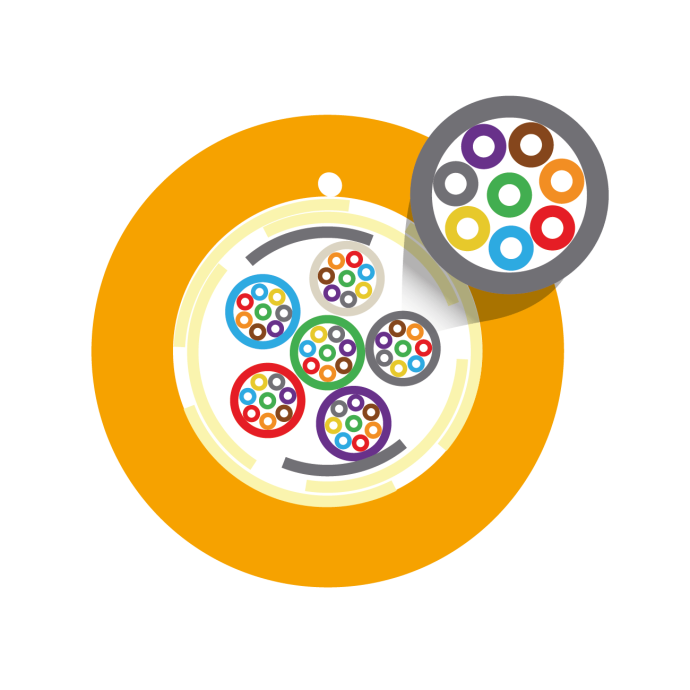

48 single-mode multi-fiber cable for indoor and outdoor installation, divided into 6 micromodules of 8 fibers, each with a UV resistant LSFH cover and with different colors.

This cable stands out for being Euroclass Dca, low attenuation fiber, micromodules with water-blocking gel and structure reinforcement with aramid (kevlar) fibers, which allows the cable to maintain its traction without the need for a central resistance element.

The cable is made of fiber type 9/125, ITU-T G.657A2. Fiber coating diameter of 250μm. Includes tear thread to open the outer cover easily.

It is supplied in coils to measure (by meter), which will be ordered from the factory, so the delivery time may vary.

Details

48 single-mode multi-fiber cable with LSFH sheath for indoor and outdoor, supplied by meter.

What are the main characteristics of Televes 231714 48-fiber cable?

Dca-s2,d2,a1 Euroclass
Low attenuation
Organized in fibre micro-modules
Blocking jelly, offering great protection against water
Good structure reinforcement using aramid fibers (kevlar), which allows to maintain its traction without the need for a central guiding wire for resistance
9/125, ITU-T G.657A2 fibre type
Coating diameter adapted to the fibre: 250 μm
Ripcord to open the outer sheath
UV-resistant LSFH sheath, orange colour

What technical specifications does the Televes 231714 48-fiber cable have?

Cable type			Indoor/Outdoor
Fibre type			9/125 (G657A2)
Number of fibres			48
Attenuation	1310nm	dB/Km	≤0,35
Attenuation	1550nm	dB/Km	≤0,21
Micro-modules	Material		LSFH (Low Smoke Free Halogen)
	Filler		Water blocking petrol-jelly
	Diameter	mm	1,1 ±0,1
Outer sheath	Material		UV-resistant LSFH (Low Smoke Free Halogen)
	Color		Orange
	Diameter	mm	7,6 ±0,4
Min. bending radius		mm	76
Short tension		N	1000
Short crush		N/100mm	1000
Operating temperature		ºC	-5 ... 60
