UAP Splitter 6 Outputs F 14.5dB Tecatel

SKU

TECPAUCLA6S

Brands: Tecatel

Availability: In stock

Delivery: 24/48 Hours

€7.65 Tax included

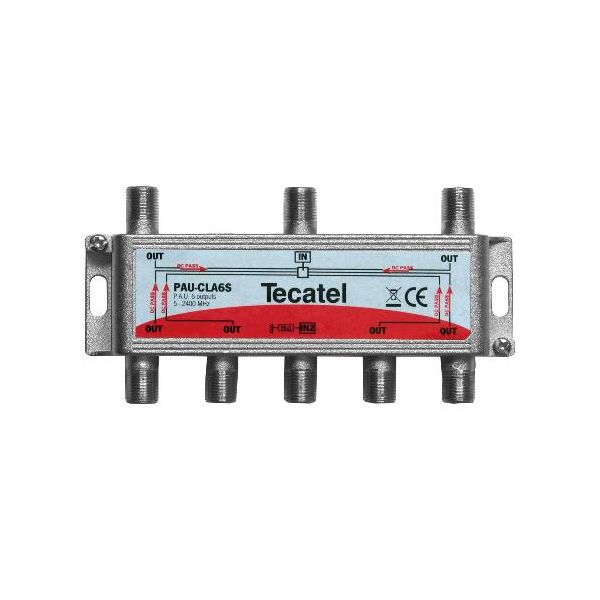

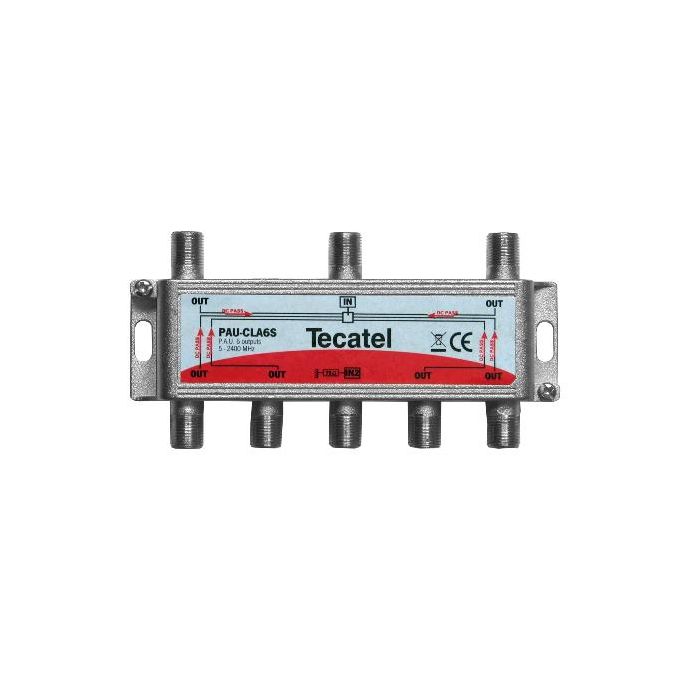

TECATEL User Access Point 2 Inputs-6 Outputs TECPAUCLA6S

This device, called PAU or user access point, is used to distribute the television signal inside your home. This element makes the connection between the building's network and the user's internal network. This PAU distributor is only installed in communal building installations that comply with ICT regulations, which require the user to receive 2 verticals of the radio-television network.

It has 2 inputs (one of them with a 75 Ohms load) and 6 outputs, all of them with OUT-IN current flow. This PAU has an insertion loss of 12 dB at 690 MHz.

The PAU is housed in a high quality, all-metal, shielded zamak enclosure, providing low attenuation. Both the inputs and outputs of this access point have F-connection, which allows for easy threaded mounting.

Details

Technical Specifications TECATEL User Access Point 2 Inputs-6 Outputs TECPAUCLA6S

What technical specifications does the UAP Tecatel PAU-CLA6S have?

Reference: PAU-CLA6S
No. exits: 6
Insertion losses:

5-47 MHz: 12 dB
47-1000 MHz: 12 dB
1000-1750: 14.5 dB
1750-2300: 17 dB
2300-2400: 17.5 dB

Isolation between outputs:

5-47 MHz:> 18 dB
47-1000 MHz:> 20 dB
1000-1750:> 20 dB
1750-2300:> 20 dB
2300-2400:> 19 dB

Return losses:

5-47 MHz: 10 dB
47-1000 MHz: 12 dB
1000-1750: 11 dB
1750-2300: 10 dB
2300-2400: 10 dB

Dimensions: 120x60x16 mm
Weight: 102 gr.

More Information

More Information
EAN	8430549028906
System	DTT & SAT
SERIE	F-connector
TV-SAT Distribution Equipment	UAP
Entorno	Interior
TV-SAT Distribution Connection	F
Outputs	6
Insertion Loss (dB)	14
Product Brand	Tecatel
