Ajax Professional Alarm Kit: Hub2 4G+ 2xPIRCAM Detector + Remote Control + Magnetic Contact + Keyboard + Black Siren

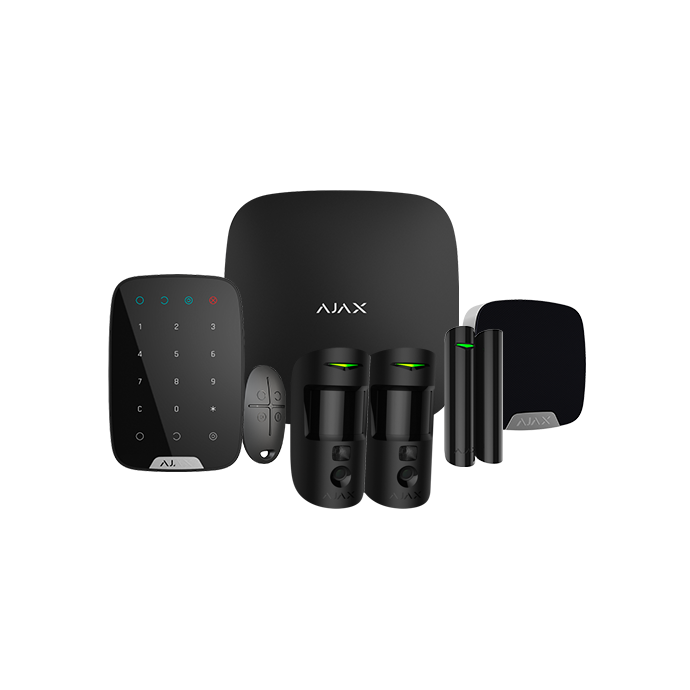

Professional Ajax alarm kit consisting of a Hub 2 4G central unit, 2 PIRCAM motion detectors, 1 magnetic contact, 1 keypad, 1 siren and 1 remote control, all in Black. Provide your home or office with a maximum protection security system.

This alarm, with ethernet communication and dual 4G SIM, is wireless and works at 868MHz with Jeweler and Wings protocol (which allows receiving images from the PIRCAM photodetector). This kit allows the visual verification of each alert on your mobile device, since it has a volumetric detector with a camera, with which it will send you photographs when an alert is activated.

The alerts will send notifications to your iOS and Android phone as an SMS message, call to your phone or push notifications. Everything at your fingertips and with your mobile device, you can control the state of the alarm, being able to arm or disarm it, control the kit devices.

Its installation is very fast and easy to configure, thanks to the intelligent Smart-Bracket support. Controlled management intuitively through your mobile wherever you are.

In addition, with this kit you can expand up to 100 devices (detectors, sirens, sensors, keyboards, etc.) You can even integrate up to 25 cameras in the system.

It is capable of covering distances of up to 2 km in open space. Its HUB2 4G central panel is powered through a power input, but it also has a rechargeable backup battery with a duration of up to 15 hours.

And best of all, you won't have to pay monthly fees for this professional security kit. The kit connects to the internet and is managed via mobile with an application that you can download for free, without fees.

Technical Specifications of the Ajax Professional Alarm Kit: Hub2 4G+ 2xPIRCAM Detector + Control + Magnetic Contact + Keyboard + Black Siren



AJ-SPACECONTROL-B

Marca Ajax
Grado de seguridad Grado 2
Funciones Armado, desarmado, armado parcial y pánico
Frecuencia 868 MHz Jeweller
Distancia de transmisión ≤ 1300 m en espacio abierto
Batería 1 pila CR2032 3.0 V (duración aproximada 3 años)
Material de la cubierta Plástico ABS
Temp. funcionamiento -20º C ~ 50º C
Dimensiones 65 (Al) x 37 (An) x 10 (Fo) mm

AJ-KEYPAD-B

Marca Ajax
Grado de seguridad Grado 2
Funciones Armado, desarmado, armado parcial y emergencia
Frecuencia 868 MHz Jeweller
Distancia de transmisión ≤ 1700 m en espacio abierto
Compatibilidad Compatible con el HUB de Ajax desde la versión de firmware 2.0 o superior
Batería 4 pilas AAA 1.5 V (duración aproximada 2 años)
Material de la cubierta Plástico ABS
Temp. funcionamiento -10º C ~ 50º C
Dimensiones 150 (Al) x 102.5 (An) x 13.2 (Fo) mm

AJ-HOMESIREN-B

Marca Ajax
Grado de seguridad Grado 2
Volumen 81~105 dB a 1 metro
Duración de alarma Configurable entre 3 segundos y 3 minutos
Batería 2 pilas CR123A 3.0 V (duración aproximada 5 años)
Frecuencia 868 MHz Jeweller
Distancia de transmisión ≤ 2000 m en espacio abierto
Indicaciones LED Aviso de alarma y señal sonora de armado/desarmado
Seguridad interna Tamper trasero contra manipulación
Protección IP50
Dimensiones 75 (Al) x 75 (An) x 27 (Fo)mm
Peso 96 g

AJ-DOORPROTECTPLUS-B

Marca Ajax
Frecuencia 868 MHz Jeweller
Grado de seguridad Grado 2
Distancia de transmisión ≤ 1000 m en espacio abierto
Entrada auxiliar contacto externo Libre de tensión NC o función tarjeta cuenta-impulsos compatible con detector de persiana LINCE-8023-RSCP
Indicaciones LED Alarma, tamper, señal
Material de la cubierta Plástico ABS
Batería 1 pila CR123A 3.0 V (duración aproximada 5 años)
Temp. funcionamiento 0º C ~ 50º C
Dimensiones transmisor 90 mm (Fo) x 20 (Ø) mm
Dimensiones magnético 90 mm (Fo) x 20 (Ø) mm

AJ-MOTIONCAM-B

Marca Ajax
Tecnología PIR volumétrico con cámara
Grado de seguridad Grado 2
Lente PIR 24 zonas y 6 planos
Campo de detección 12 m / H: 88.5º / V: 80º / Instalación 2.4 m
Frecuencia 868 MHz Jeweller y Wings (envío de imágenes)
Distancia de transmisión ≤ 1700 m en espacio abierto
Inmunidad mascotas ≤ 20 kg, ≤ 50 cm
Anti-enmascaramiento No dispone
Sensibilidad Ajustable. 3 niveles (bajo, medio y alto)
Resolución imágenes Hasta VGA (640 x 480)
Número de imágenes Hasta 5 imágenes por cada detección
Envío de imágenes Envío y recepción de imágenes en menos de un minuto
Iluminación infrarroja IR para modo nocturno
Indicación LEDs Alarma, tamper, señal
Batería 2 pilas CR123A 3.0 V (duración hasta 4 años)
Compatibilidad Hub 2 y Hub 2 Plus
Temp. funcionamiento 0º C ~ 40º C
Material de la cubierta Plástico ABS
Dimensiones (sin soporte) 135 (Al) x 70 (An) x 60 (Fo) mm

AJ-HUB2-4G-B

Marca AJAX
Frecuencia RF 868 MHz. Protocolo vía radio Jeweller y Wings
Grado de seguridad Grado 2
Seguridad interna Tamper anti-apertura
Sirena interna No dispone
Comunicación Ethernet / Dual SIM 4G (LTE)
Máximo de dispositivos 100
Integración vídeo Hasta 25 cámaras IP o canales de videograbador
Número de usuarios Hasta 50
Comunicación con CRA Contact ID / SIA
Compatibilidad No compatible con ocBridge y uartBridge
Material de la cubierta Plástico ABS
Alimentación AC 110~250 V, 50/60 Hz
Batería de respaldo Duración hasta 16 horas
Temp. funcionamiento +5º C ~ 40º C
Dimensiones 163 (Al) x 163 (An) x 36 (An) mm
