Professional Alarm Kit Ajax PIRCAM + Panel + Control + PIR Black

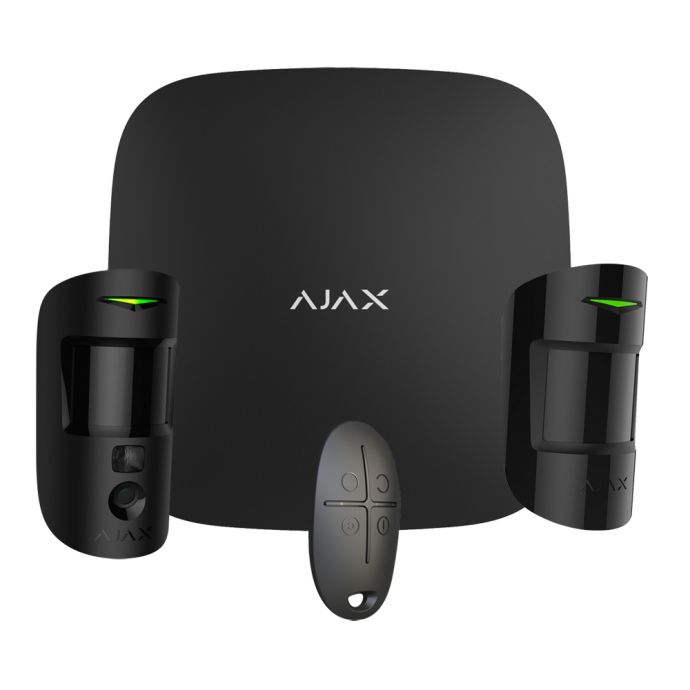

Ajax Starter Kit: Hub2 + PIR Detector + PIRCAM Detector + Remote
Ajax professional alarm kit consisting of a central Hub 2, 2 motion detectors and a black remote control. Provide your home or office with a maximum protection security system.
This alarm, with ethernet communication and dual SIM GPRS, is wireless and works at 868MHz with Jeweler and Wings protocol. This kit allows the visual verification of each alert on your mobile device, since it has a volumetric detector with a camera, with which it will send you photographs when an alert is activated.
The alerts will send notifications to your iOS and Android phone as an SMS message, call to your phone or push notifications. Everything at your fingertips and with your mobile device, you can control the state of the alarm, being able to arm or disarm it, control the kit devices.
Its installation is very fast and easy to configure. Controlled management intuitively through your mobile wherever you are.
In addition, with this kit you can expand up to 100 devices (detectors, sirens, sensors, keyboards, etc.) You can even integrate up to 25 cameras in the system.
And best of all, you won't have to pay monthly fees for this professional security kit. The kit connects to the internet and is managed via mobile with an application that you can download for free, without fees.
Kit Content:
*Control panel AJ-HUB2-B
*AJ-MOTIONCAM-B photodetector
*PIR detector AJ-MOTIONPROTECT-B
*Remote control AJ-SPACECONTROL-B
*Instructions for use
Technical Specifications of the Ajax Starter Kit: Hub2 + PIR Detector + PIRCAM Detector + Remote
AJ-MOTIONPROTECT-B |
|
Brand | Ajax |
Technology | PIR |
Security grade | Grade 2 |
PIR lens | 24 zones and 6 planes |
Detection range | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
Frequency | 868 MHz Jeweller |
Transmission distance | ≤ 1700 m in open space |
Pet immunity | ≤ 20 kg, ≤ 50 cm |
Anti-masking | No |
Sensitivity | Adjustable. 3 levels (low, medium and high) |
LEDs indication | Alarm, tamper, signal |
Battery | 1 battery CR123A 3.0 V (approximate life time 7 years) |
Temp. operation | 0º C ~ 50º C |
Housing material | ABS plastic |
Dimensions (without bracket) | 110 (H) x 65 (W) x 50 (D) mm |
AJ-SPACECONTROL-B |
|
Brand | Ajax |
Security grade | Grade 2 |
Functions | Armed, disarmed, partially armed and panic |
Frequency | 868 MHz Jeweller |
Transmission distance | ≤ 1300 m in open space |
Battery | 1 battery CR2032 3.0 V (approximate life time 3 years) |
Housing material | ABS plastic |
Temp. operation | -20º C ~ 50º C |
Dimensions | 65 (H) x 37 (W) x 10 (D) mm |
AJ-HUB2-B |
|
Brand | AJAX |
RF frequency | 868 MHz. Protocol via Jeweller wireless technology |
Internal security | Tamper-resistant opening |
Internal siren | No |
Communication | Ethernet / Dual SIM 2G (GPRS) |
Maximum devices | 100 |
Video integration | Up to 25 IP cameras or video recorder channels |
Number or users | Up to 50 |
Connection with CRA | Contact ID / SIA |
Compatibility | Not compatible with ocBridge and uartBridge |
Housing material | ABS plastic |
Power | AC 110~250 V, 50/60 Hz |
Backup battery | Duration up to 16 hours |
Temp. operation | +5º C ~ 40º C |
Dimensions | 163 (H) x 163 (W) x 36 (D) mm |
AJ-MOTIONCAM-B |
|
Brand | Ajax |
Technology | Volumetric PIR with photo camera |
Security grade | Grade 2 |
PIR lens | 24 zones and 6 planes |
Detection range | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
Frequency | 868 MHz Jeweller and Wings (sending images) |
Transmission distance | ≤ 1700 m in open space |
Pet immunity | ≤ 20 kg, ≤ 50 cm |
Anti-masking | No |
Sensitivity | Adjustable. 3 levels (low, medium and high) |
Image resolution | Up to VGA (640 x 480) |
Number of images | Up to 5 images per detection |
Sending images | Sending and receiving images in less than a minute |
Infrared lighting | IR for night mode |
LEDs indication | Alarm, tamper, signal |
Battery | 2 CR123A3.0 v-batteries (life up to 4 years) |
Compatibility | AJ-HUB2-W/B |
Temp. operation | 0º C ~ 40º C |
Housing material | ABS plastic |
Dimensions (without bracket) | 135 (H) x 70 (W) x 60 (D) mm |
System | Wireless |
---|---|
SERIE | Kit |
Color | Black |
Automation | Domotic Kit |
Product Brand | AJAX |
Icon | Label | Size | Download |
---|---|---|---|
|
Kit Alarma Profesional Ajax PIRCAM + Panel + Mando + PIR Negro | 341.1 KB | Download |
