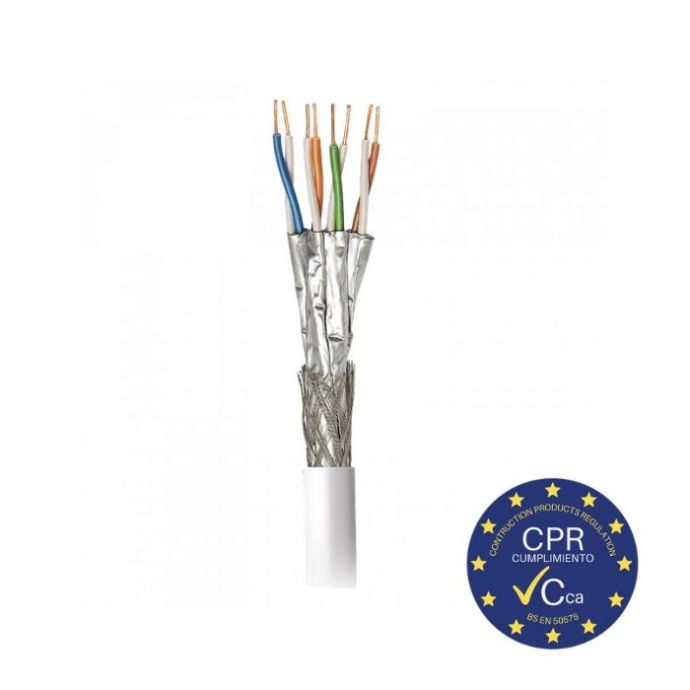

Televes 219103 DK7000 S/FTP Cat 7 Cca LSFH 23AWG data cable
The Televes SFTP CAT7 indoor white copper cable with CPR Cca and LSFH sheath in a 100 m reel is designed for professional structured cabling installations that require high speed, stable performance and improved fire safety. It is supplied in a 100 metre reel, a practical format for indoor runs, network extensions, partial refurbishments and projects where a larger reel is not required.
This cable works in 10Base-T, 100Base-T, 1000Base-T and 10GBase-T Ethernet systems, with Cat 7 performance, bandwidth up to 1000 MHz and a 23AWG solid copper conductor. Its S/FTP construction includes individual pair shielding and an outer braid, making it especially suitable for installations with network equipment, switches, IP cameras, WiFi access points or routes exposed to electromagnetic interference. For cable termination, it can be combined with compatible RJ45 connectors according to the installation design.
This is a product for new structured cabling installations, not a spare part. Its white LSFH halogen-free sheath has a CPR Euroclass Cca-s1a,d1,a1 rating, so in the event of fire it helps reduce opaque smoke and toxic gas emissions, improving evacuation conditions in professional buildings, ICT infrastructures, offices, hotels and corporate installations.
In addition, the Televes 219103 is recommended for PoE, PoE+ and PoE++ applications under IEEE 802.3bt, allowing data and power to be transmitted through the same cable. If the project requires a longer single cable supply, the Televes 500 m white indoor STP CAT7 cable can be considered as an alternative.
Extended information about Televes SFTP CAT7 Indoor White Cu Cable with CPR Cca and LSFH in 100 m Reel
Practical applications for Televes SFTP CAT7 Indoor White Cu Cable with CPR Cca and LSFH in 100 m Reel
Example 1. Interconnection network for a medical radiodiagnosis centre:
A private radiology centre installs this cable to connect its new MRI rooms to the central medical image storage server (PACS). The S/FTP double shielding helps protect the installation against electromagnetic interference generated by the scanner magnets, ensuring that large DICOM image files are transferred at a stable speed of up to 10 Gbps. In addition, the Cca LSFH fire rating supports compliance with fire safety requirements in public-access buildings, helping to provide safer evacuation conditions with reduced toxic gas and opaque smoke emissions in the event of fire.
Example 2. PoE++ network for high-performance IP devices:
In a professional installation with IP cameras, WiFi 6 access points or PoE++ devices powered from the switch, this Televes Cat 7 DK7000 cable allows data and power to be transmitted through the same cable run. Its 23AWG solid copper conductor and IEEE 802.3bt compatibility make it suitable for projects where voltage drop, link stability and network performance must be carefully controlled.
Package contents of the Televes SFTP CAT7 Indoor White Cu Cable with CPR Cca and LSFH in 100 m Reel
1 retractable reel of Televes DK7000 S/FTP Cat 7 Cca LSFH data cable.
Included length: 100 metres.
Connectors, tools and additional accessories are not confirmed as included.
Technical specifications Televes SFTP CAT7 Indoor White Cu Cable with CPR Cca and LSFH in 100 m Reel
