TP-Link 8MP Fixed 2.8mm Turret IP Camera with 30m Hybrid Light and AI

SKU
TL-INSIGHT-S485-2.8MM
Brands: Tplink
€130.10
Tax included
% Discount for professionals
Tplink
Availability: In stock
5 days

TP-Link VIGI InSight S485 8MP 4K Camera with Hybrid Light and AI

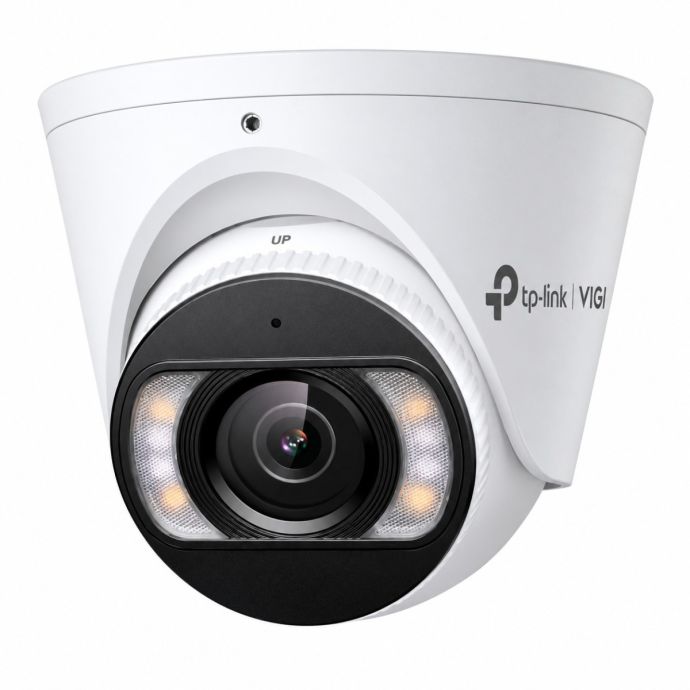

The TP-Link VIGI InSight S485 2.8 mm delivers 4K video surveillance with a 3840 × 2160 pixel resolution, providing a high level of detail for identifying faces, vehicles and objects. Its turret design and metal housing with IP67 protection make it suitable for professional indoor and outdoor projects.

Its fixed 2.8 mm F1.6 lens provides a wide 111.4° horizontal and 134° diagonal field of view. It features 4 infrared LEDs and 4 white LEDs, both with a range of up to 30 metres, offering different illumination modes to adapt surveillance to night-time conditions. An excellent solution within our range of IP and WiFi cameras.

Its intelligent analytics can classify people and vehicles and provide intrusion, line-crossing, region entrance and exit, loitering and other smart detection functions. It is particularly suitable for installers looking to reduce irrelevant events and receive more accurate alerts. Designed for IP video surveillance systems, it supports ONVIF and IEEE 802.3af/at PoE, allowing power and data to be transmitted over the same network cable for easier professional installation. It can be integrated, for example, with a VIGI PoE NVR.

This is not a replacement part, but a camera designed for new installations or extensions of IP video surveillance systems. In addition to 8MP resolution, IR/white illumination and intelligent people and vehicle classification, it features two-way audio, 120 dB WDR, H.265+ compression and a microSD card slot supporting up to 512 GB, combining advanced surveillance capabilities in a camera designed for professional installations.

Reference: TL-INSIGHT-S485-2.8MM

-
+

Extended information about the TP-Link VIGI InSight S485 8MP 2.8 mm Turret IP Camera with 30 m Hybrid Light and AI

Practical applications of the TP-Link VIGI InSight S485 8MP 2.8 mm

Example 1. Monitoring entrances, commercial premises and warehouses:

At the entrance to a shop, warehouse or business premises, the 134° diagonal field of view of the 2.8 mm lens allows a wide area to be monitored with a single camera. The 4K 8MP resolution helps preserve image detail, while human and vehicle classification makes event management more precise and reduces alerts caused by irrelevant movement. :contentReference[oaicite:6]{index=6}

Example 2. Outdoor surveillance with hybrid night illumination:

In car parks, façades, patios or access routes, the combination of infrared and white light with a range of up to 30 metres makes the VIGI InSight S485 suitable for surveillance in low-light conditions. Its metal construction and IP67 weather protection also make it appropriate for professional outdoor projects where reliability and simplified PoE cabling are important. :contentReference[oaicite:7]{index=7}

Package contents of the VIGI InSight S485

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Technical specifications VIGI InSight S485

Brand TP-Link VIGI
Model InSight S485
Version 2.8 mm lens
Camera type Turret Network Camera
Image sensor 1/2.7" Progressive Scan CMOS
Maximum resolution 3840 × 2160
Main stream frame rate Up to 25 fps
Lens type Fixed focal lens
Focal length 2.8 mm
Aperture F1.6
Horizontal field of view 111.4°
Vertical field of view 58.8°
Diagonal field of view 134°
Lens mount M12 × P0.5
Minimum illumination 0.005 Lux; 0 Lux with IR/White light
Day/Night mechanism IR Cut Filter
Shutter speed 1/3 to 1/10000 s
IR LEDs 4
IR range 30 m
IR wavelength 850 nm
White LEDs 4
White light range 30 m
Illuminator control Auto / Scheduled / Always on / Always off
DORI Detect distance 85 m
DORI Observe distance 35 m
DORI Recognize distance 17 m
DORI Identify distance 8 m
Pan adjustment 0° to 360°
Tilt adjustment 0° to 75°
Rotation adjustment 0° to 360°
Video compression Main stream: H.265 / H.265+ / H.264 / H.264+; Sub-stream: H.265 / H.264
Main stream bit rate 256 Kbps to 8 Mbps
Sub-stream bit rate 64 Kbps to 512 Kbps
Image enhancement BLC / 3D DNR / HLC / SmartIR
WDR 120 dB
SNR ≥ 52 dB
Privacy mask Up to 4 masks
ROI 1 region
Human & Vehicle Classification Yes
Smart events Intrusion, line-crossing, region entering, region exiting, abandoned object, object removal, loitering, people, vehicle, abnormal sound and scene change detection
Basic events Motion detection, video tampering detection and illegal login exception
Alarm linkage Memory card recording, push message, audible warning and white light flashing
Two-way audio Yes
Built-in microphone Yes
Built-in speaker Yes
Microphone coverage Up to 5 m
Network interface 1 × RJ45 10/100M self-adaptive Ethernet port
PoE IEEE 802.3af/at, Class 0
DC power 12 V DC ±5%
Maximum power consumption 11.5 W at 12 VDC / 12.5 W via PoE
On-board storage microSD card slot, up to 512 GB
ONVIF Yes, Profile S/T/G
Cloud Yes
Client software VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Housing material Metal
Protection rating IP67
Operating temperature -30 °C to 60 °C
Operating humidity 95% or less, non-condensing
Dimensions 111 × 111 × 83.7 mm
Net weight 0.48 kg
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC



More Information
More Information
EAN 8885020628289
Hight 0.000
Length 0.000
Width 0.000
Technology IP
Usar stock disponible No
Product Brand Tplink
Camera Type Turret
Optic Type Fixed
Color White
Alimentación 12VDC/PoE
