Central Profiler Revolution 70dB 5e (FM - 4xVHF/UHF)

Availability: In stock
24/48 Hours
SKU:
JOH6700HP
Free shipping
(Iberian Peninsula)
€280.30 Tax included
Johansson
24/48 Hours

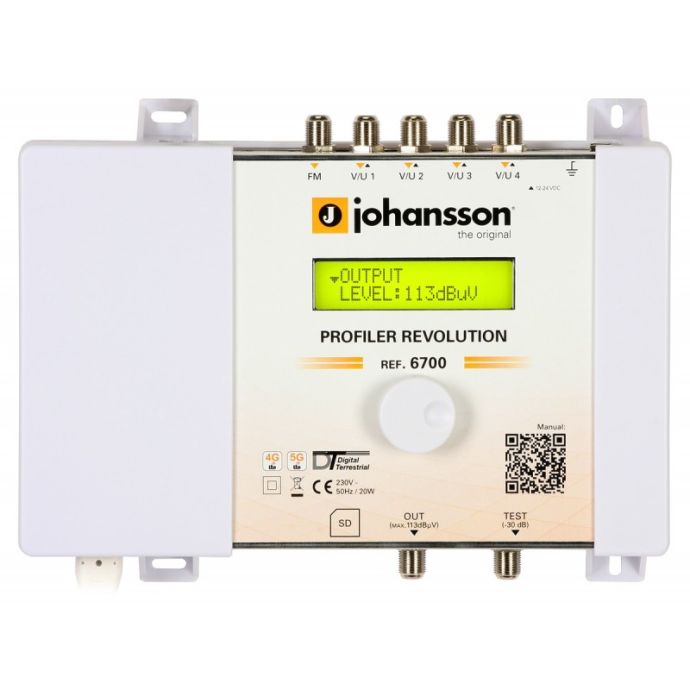

Profiler Revolution 6700HP Processing Central

Johansson's Central Profiler Revolution to amplify DTT channels with 5 inputs (FM + 4xUHF/VHF), 70dB gain for UHF and maximum output signal 131dBμV. SD card slot to copy settings easily.

Adapted to the 2nd Digital Dividend with automatic 5G/4G LTE protection. It includes signal level reading, so no field meter is required, it has the most selective filters on the market (50dB to adjacent channel). CAG in real time on all individual multiplexes. This exchange is capable of processing and converting more than 50 channels. It can configures up to 32 filters of 1 or 2 adjacent channels.

Free shipping
(Iberian Peninsula)
24/48 Hours

Central Profiler Revolution by Johansson for DTT with 5 inputs, output level 131dBμV and 5G LTE filter.

What are the main features of the Johansson Profiler Revolution 6700HP?

  • Reading the input signal level: no field meter needed
  • Can process and convert more than 50 channels
  • The most selective filters on the market (50 dB to adjacent channel)
  • CAG in real time on all individual multiplexes
  • Total flexibility in the assignment of filters of any of the inputs
  • Made in Europe, for applications worldwide

What technical specifications does the Johansson Profiler Revolution 6700HP processing plant have?

  • Inputs: 4 VHF/UHF + 1 FM
  • Outputs: 1 principal (FM - VHF - UHF) + 1 test port (-30db)
  • Frequency Banc (MHz):
    • FM: 88 - 108
    • VHF: 174 - 240
    • UHF: 470 - 862
  • LTE Protection (MHz): Automatic selectivity: 694, 790 o OFF
  • Input level (dBµV):
    • FM: 37 - 77
    • VHF: 40 - 109
    • UHF: 40 - 109
  • Output level (dBµV):
    • FM: 113 (60dB/IM3)
    • VHF/UHF: 120 (60dB/IM3) - 131 (35dB/IM3)
    • VHF/UHF: 112 (with 6 MUX)
  • Conversion: Yes (from any VHF-UHF channel to any VHF-UHF channel)
  • Nº Channels: >50
  • Add channels: 1 or 2 MUXes per filter
  • Gain (dB):
    • FM: 35
    • VHF: >70
    • UHF: >70
  • Gain adjustmen:
    • FM (dB): 20
    • VHF/UHF: CAG channel
  • General attenuation (dB): 20
  • VHF/DAB attenuation (dB): 15
  • Slope adjustment (dB): 9
  • Selectivity (dB/1MHz): 35
  • Output MER (dB):
    • VHF: 35
    • UHF: 35
  • ESD protection: All inputs
  • Telepower voltage for preamp (V): 12 o 24
  • Telefeeding Current (mA): 100 (total for 4 inputs)
  • SD port: Yes (to copy configuration and update functions)
  • Working temperature (°C): -5 a +50
  • Power supply (Vac): 100 - 240
  • Consumption (W): 15
  • Dimensions (mm): 220 x 165 x 55
  • Weight (kg): 0,8
Free shipping
(Iberian Peninsula)
More Information
EAN 2067000000018
Color White
Type Programmable station
Entorno Interior
# Inputs 5
Outputs 1
Input signal FM, UHF, VHF
Gain 70
Max. output level Ganancia (dB/uV) 130
Satellite signal supported No
LTE No
Current bypass Terrestrial
