Fagor TV-SAT Separator End Outlet Base

SKU

FAG86401

Brands: Fagor

Availability: In stock

Delivery: 24/48 Hours

€3.46 Tax included

Final TV +RF/SAT Separator Socket Base by Fagor

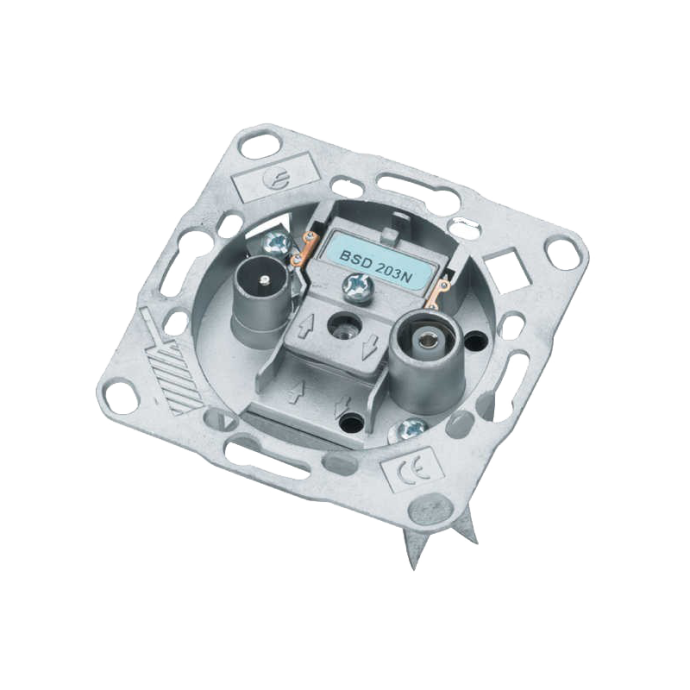

The Basic BSD 200 series final socket is characterized by having 2 outputs: a male IEC for TV+FM and another female connector for SAT. These sockets are used in digital TV distribution, reaching up to 2300MHz, in both individual and collective indoor installations.

Its chassis is made of zamak, a very resistant material, with special shielding for the input and output connections, preventing signal leaks to the outside and avoiding interference.

It has very low attenuations. Its design allows for easy installation.

Details

Technical Specifications of the Fagor TV +RF/SAT Final Separator Socket Base

MODEL					BSD 201 S	BSD 201 SDC	BSD 203 N	BSD 203 DC	BSD 210 N	BSD 210 DC	BSD 215 N	BSD 220 N
Reference					86218	86221	86205	86204	86219	86211	86215	86220
Nº of output					2
Covered band				MHz	5 ÷ 2300
Current step		IN-OUT 300 mA SAT 300 mA	max max		—	—	—	—	Si
Current step		IN-OUT 300 mA SAT 300 mA	max max		—	Si	—	Si	—	Si	—	—
Step attenuation		5 - 30 47 - 862 950 - 2150 2150 - 2300	MHz MHz MHz MHz	dB	Individual*		— — — —		3,0 2,5 2,5 3,0		3,0 2,0 3,0 3,0	3,0 1,8 3,0 3,0
Bypass attenuation		5 - 30 47 - 862 950 - 2150 2150 - 2300	MHz MHz MHz MHz	dB	0,5 1 1 1		2,0 3,0 3,0 3,0		10 11,5 12 12,5		15,0 15,0 16,0 16,0	16,0 20,0 20,0 22,0
Directive dimming		5 - 30 47 - 862 950 - 2150 2150 - 2300	MHz MHz MHz MHz	dB	— — — —		— — — —		15 22 18 20		23 23 20 20	25 25 25 23
Isolation between outputs		5 - 30 47 - 862 950 - 2150 2150 - 2300	MHz MHz MHz MHz	dB	30 15 15 18		30 15 15 18		30 25 15 25		25 25 15 20	35 30 25 30
Return losses		5 - 862 950 - 2300	MHz MHz	dB	10 6
Shielding factor	VHF UHF SAT	30 - 300 300 - 862 950 - 2300	MHz MHz MHz	dB	75 65 55
Output connectors (UNE 20-523-79) ^TVSAT					IEC 9,5 (h) IEC 9,5 (m)
Packaging dimensions (20 u.)				mm	300 x 165 x 85
Weight (20 u.)				Kg	2

More Information

More Information
EAN	8432589864018
System	DTT & SAT
SERIE	F-connector
Color	Silver
TV-SAT Distribution Equipment	Connection
Entorno	Interior
TV-SAT Distribution Connection	F
Outputs	2
Input signal	FI, FM, UHF, VHF
Product Brand	Fagor
