Fermax Marine SIP 2 Pushbutton Plate ST2 AP102

SKU
FER1682
Brands: Fermax
€472.84
Tax included
Availability: On request
1 to 7 days

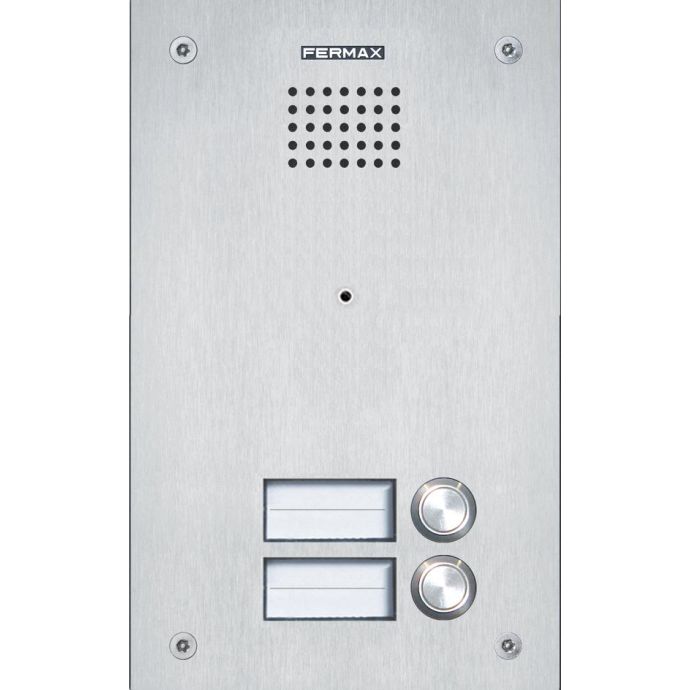

Marine SIP ST2 AP102 Fermax 1682 plate by Fermax

The Fermax Marine SIP 1682 plate is a SIP entrance panel with 2 buttons , designed for professional installations where the mechanical resistance, durability and reliability outdoors are priority.

Made in 2.5 mm thick AISI 316L stainless steel , this vandal-proof plate IP65 IK09 withstands impacts, vandalism and extreme weather conditions, being especially suitable for humid, saline or corrosive environments.

The vandal-proof stainless steel pushbuttons , with anti-lock system and integrated information card holder , guarantee reliable operation even in intensive use accesses, maintaining a robust and professional aesthetic.

Altogether, the Marine SIP plate Fermax 1682 It is an ideal solution for entrances to two homes, offices or SIP facilities where the robustness of the material and IP technology are decisive.

*Marine plates do not include the recessed box or surface, they must be ordered separately.

Reference: FER1682

-
+

Expanded information on Fermax Marine SIP ST2 AP102 Plate

The Fermax Marine SIP ST2 AP102 belongs to the range MARINE , developed specifically to offer maximum resistance in demanding outdoor installations , combining premium materials with professional SIP technology.

Its construction in AISI 316L stainless steel and its certification IP65 IK09 They make it one of the most robust plates on the market for applications in adverse climates.

Practical Applications of the Fermax 1682 SIP Marine Plate

1. Access to semi-detached homes and two-user buildings

The configuration of 2 pushbuttons allows you to clearly and directly manage access to semi-detached homes, professional offices or buildings for two users , maintaining call independence and an orderly SIP installation.

2. Aggressive environments and exposed exterior accesses

Thanks to your AISI 316L stainless steel and its anti-vandal design, this plate is ideal for coastal areas, industrial environments, parking lots or exposed facades , where resistance to corrosion and vandalism is essential.

Technical Specifications of the Fermax 1682 SIP Marine Plate

otocolos

SIP v1 (RFC2543), SIP v2 (RFC3261) sobre TCP, UDP o TLS
RTP/RTCP/SRTP
STUN
DHCP
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Audio

Codecs G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K, G.722, Opus
DTMF In-band, Out-band (RFC2833/SIP INFO)

Departures

2x Relé C-N/O, N/C máximo 30V/2A cc, 125V/0,5A ca

Red

Ethernet 10/100 Mbps
Modos IPv4, IPv6, IPv4 IPv6
Static, Dynamic, PPoE IP Address
VPN L2TP, OpenVPN
VLAN

Feeding

PoE Class 3 (30W max)
12Vcc/1A

Others

Operating temperature: -30ºC to 60ºC
Operating humidity: up to 95%, non-condensing
Tested according to IEC 60068 standard



More Information
EAN 8424299016825
Hight 0.000
Length 0.000
Width 0.000
ACCESOS - SISTEMA SIP
ACCESOS - SERIE MARINE
Color Silver
Color Portero/Videoportero Solo Audio
Type Entrance panel
Usar stock disponible No
Product Brand Fermax
Write Your Own Review
You're reviewing:Fermax Marine SIP 2 Pushbutton Plate ST2 AP102
Your Rating
File Label Size Download
pdf Guía Rápida Placa Marine SIP ST2 AP102 de Fermax 1.4 MB Download
pdf Declaración de Conformidad Placa Marine SIP ST2 AP102 de Fermax 137.2 KB Download
pdf Ficha Técnica Placa Marine SIP ST2 AP102 de Fermax 123.5 KB Download
